Corner bracket slide arm push side 7509-7511

7509-66-91/E
arrow_selector
close

Corner bracket for door closer 7509 or 7511

  • for quick and accurate assembly
  • for mounting the slide arm of door closer 7509 or 7511
  • on the push side
  • in the reveal
Specifications Downloads Technical drawings Associated products
Commercial information
expand_more
Type slide arm push side 7509-7511
Use for door control 7509 or 7511
Safety information
expand_more
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 462 mm
Product Width 30 mm
Product Height 30 mm
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Mounting position slide-arm push side regular
Recommended Mounting Materials
- 5.0 x 30 mm screw: 4 pieces
- M5x12 mm bolt: 3 pieces
- M5x20 mm bolt: 3 pieces
- M5x35 mm bolt: 3 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249367064
Weight small package 0 kg
Dimensions small package 565 x 48 x 34 mm
Pieces per bulk package 35 piece
EAN bulk package 8713249367071

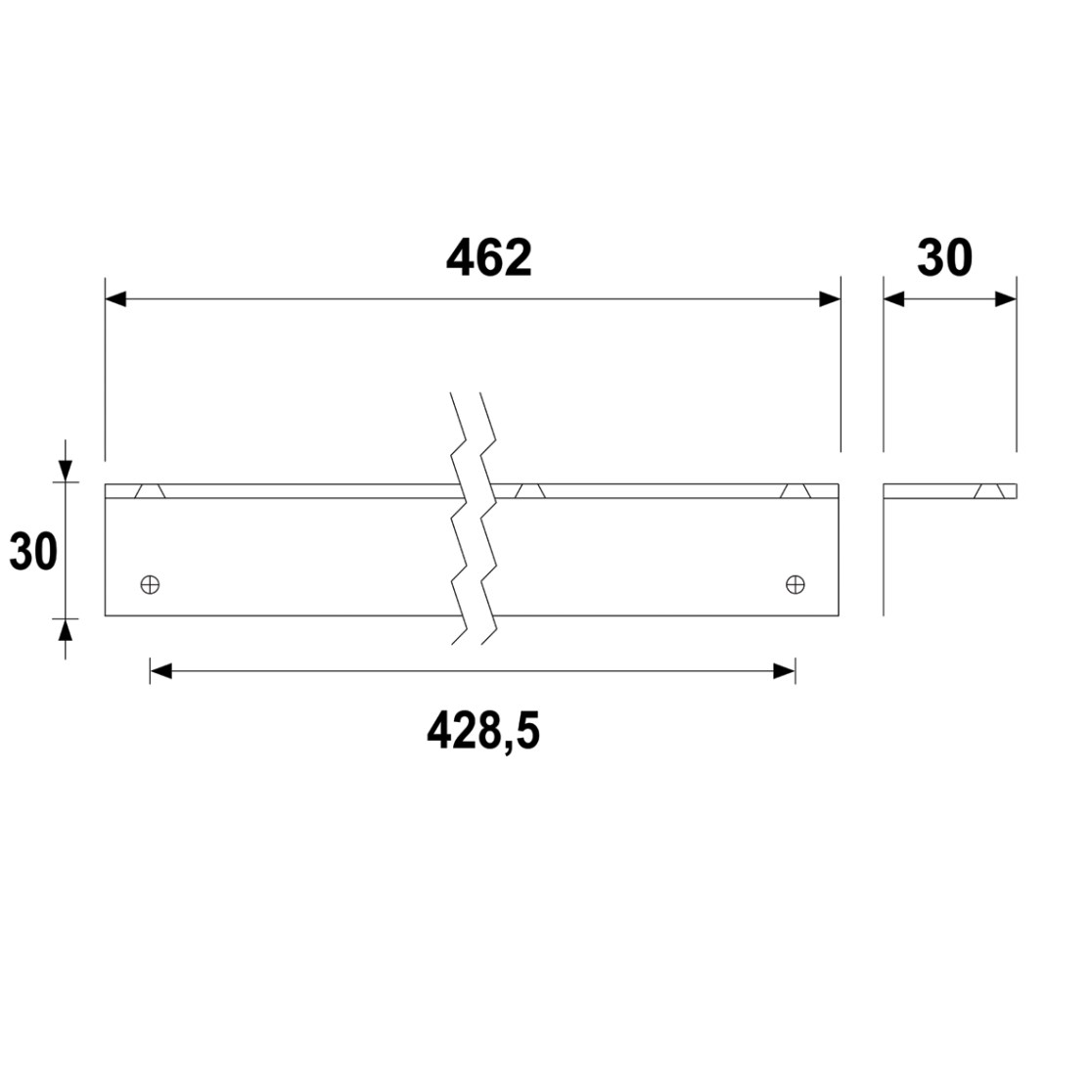

Technical drawings
Corner bracket slide arm push side 7509-7511
75096691E
