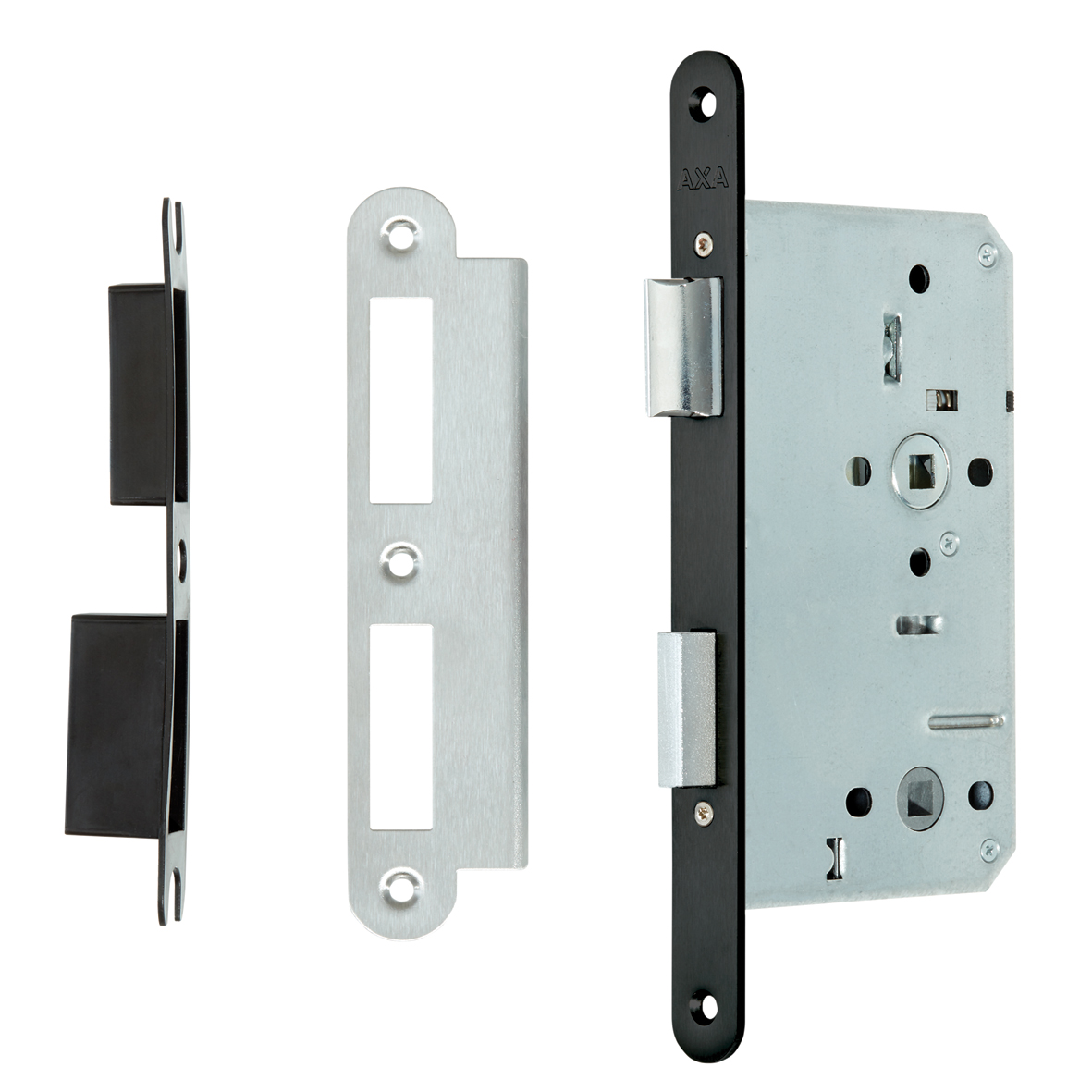

Commercial toilet-bathroom lock 7065 TL78-8

7065-60-56/78
arrow_selector
close

Solid commercial toilet-bathroom lock for intensive use.

  • with black stainless steel face plate
  • quick reversible latch
  • sturdy spindle mechanism
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings Similar products

Specifications

Commercial information
expand_more
Type 7065 TL78-8
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 235 mm
Product Width 20 mm
Thickness 15 mm
Mounting depth 93 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Heart to heart size type handle hole - toilet operating hole (TL)
Backset 60 mm
Material Stainless steel
Finish Black lacquered
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Product Weight 774 gr
Pieces per small package 1 piece
EAN small package 8713249274058
Weight small package 0.808 kg
Dimensions small package 240 x 98 x 25 mm
Pieces per bulk package 15 piece
EAN bulk package 8713249274065
Weight bulk package 12.3 kg
Dimensions bulk package 320 x 260 x 155 mm

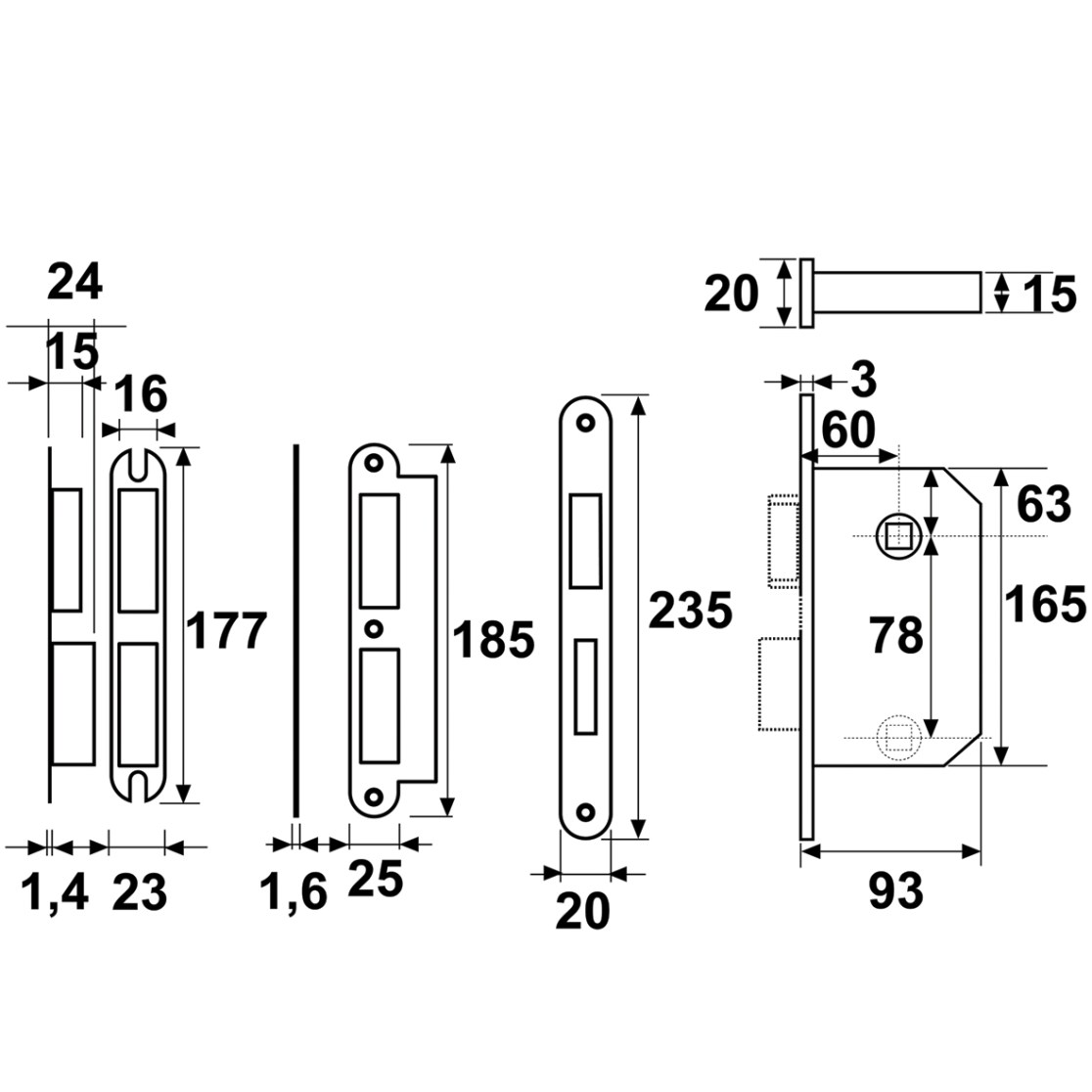

Technical drawings

Similar products

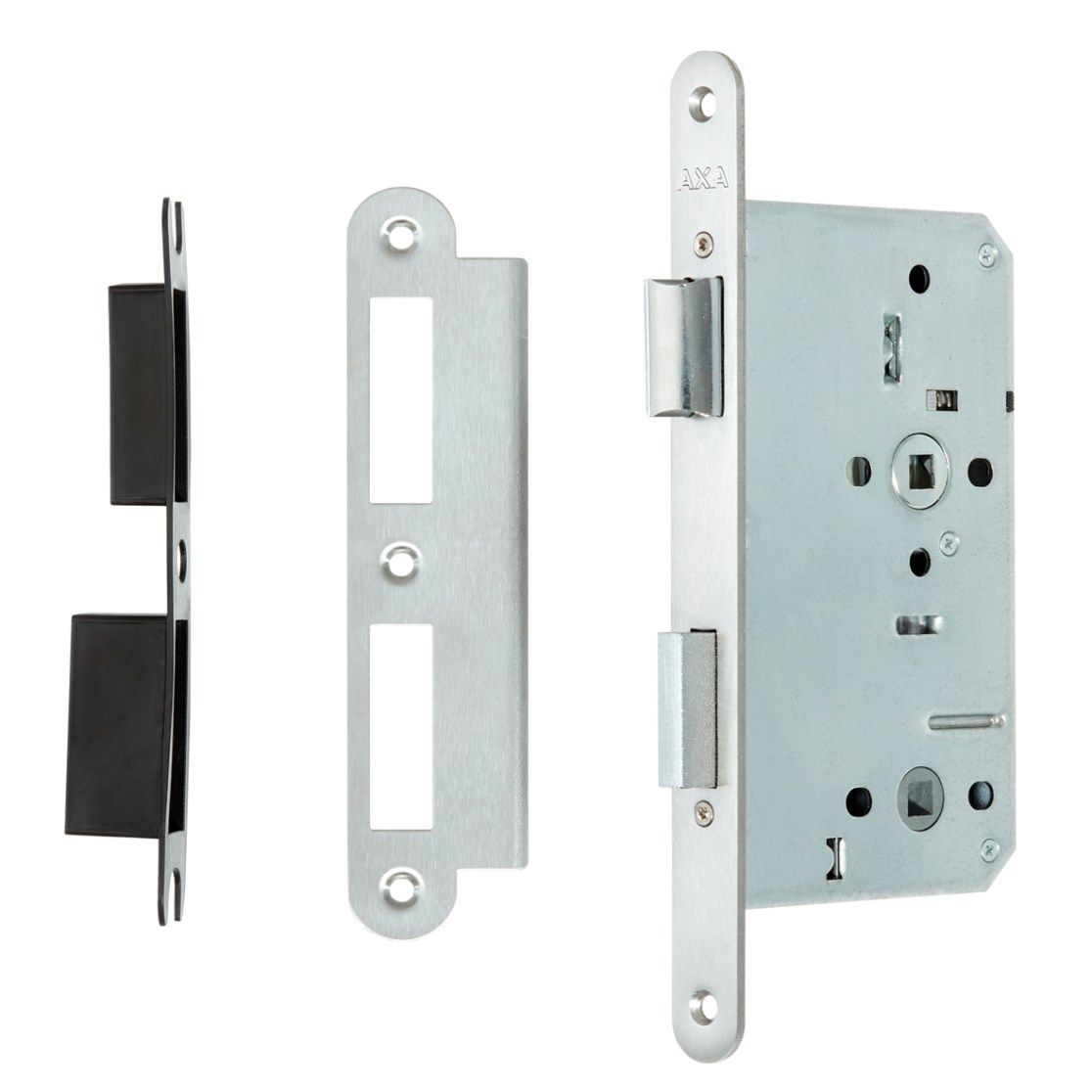

Commercial toilet-bathroom lock 7065 TL78-8
