Combi window stay AXAflex Classic
2480-49-81The AXAflex Classic is a classically-styled combi stay and is ideal when using hopper windows to ventilate a room.
- window stay and closer in one
- variable with three preferred positions for optimal ventilation
- maximum ventilation opening 160 mm
- hinged
- rotatable
- stainless steel
The AXAflex Classic is a classically-styled combi stay and is ideal when using hopper windows to ventilate a room.
- window stay and closer in one
- variable with three preferred positions for optimal ventilation
- maximum ventilation opening 160 mm
- hinged
- rotatable
- stainless steel
Specifications
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
- 4.0 x 30 mm screw: 4 pieces
Commercial information
Type AXAflex Classic
Use for skylights, hopper windows and top-hung windows
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information

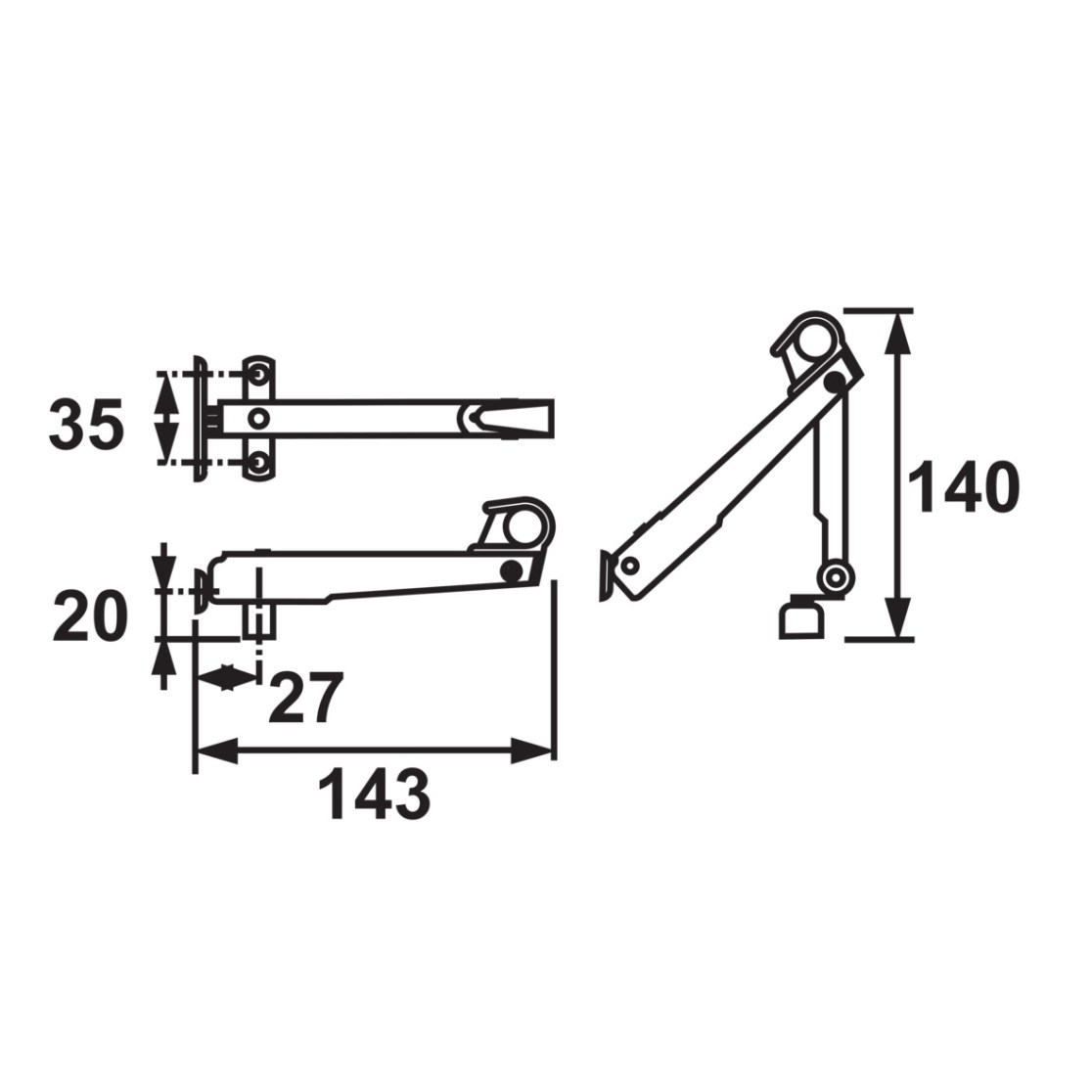

Product Length 143 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position 140 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black
Assembly information
Including Mounting Material False

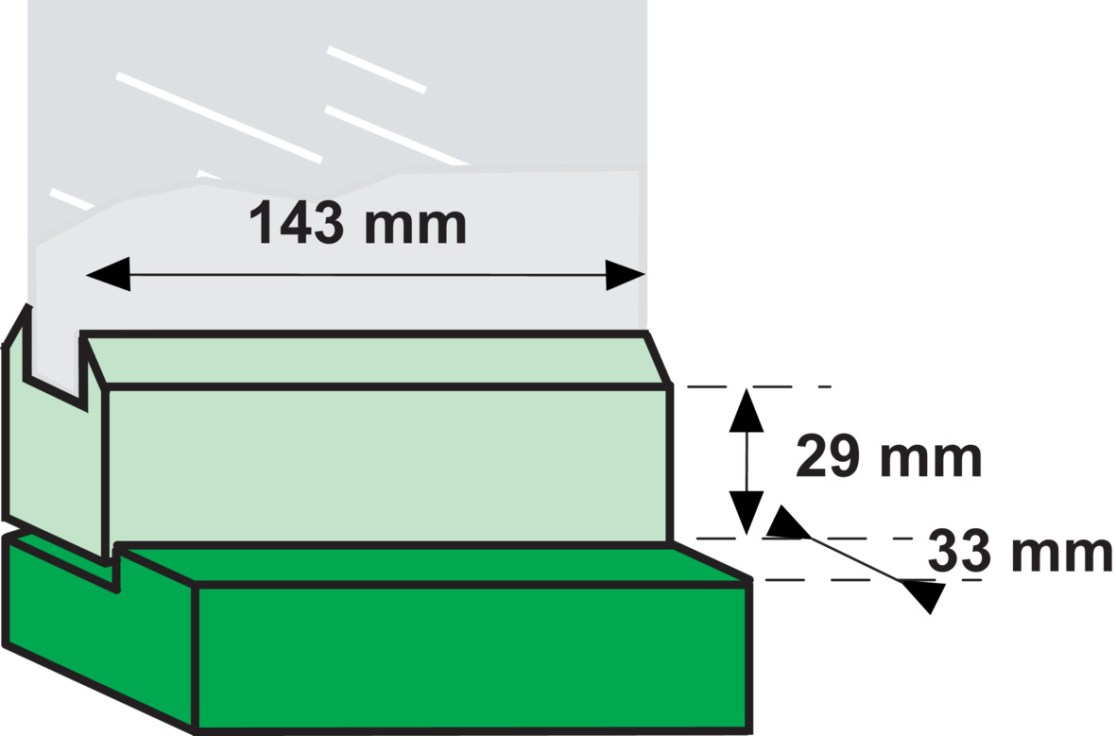

Mounting length 143 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 29 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
- 4.0 x 30 mm screw: 4 pieces
Logistic information
Product Weight 132 gr
Pieces per bulk package 20 piece
EAN bulk package 8713249048086
Weight bulk package 2.77 kg
Dimensions bulk package 200 x 150 x 120 mm
