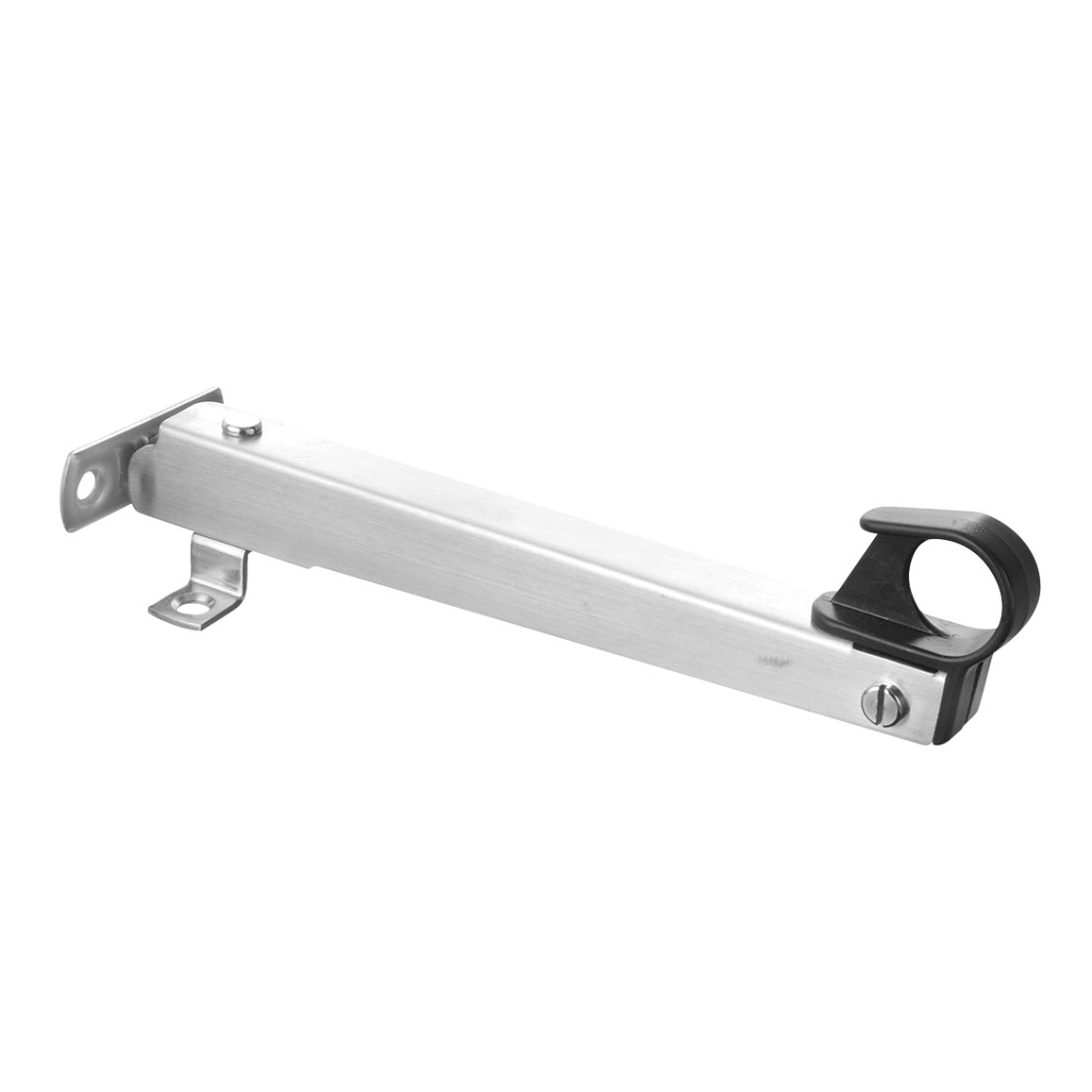

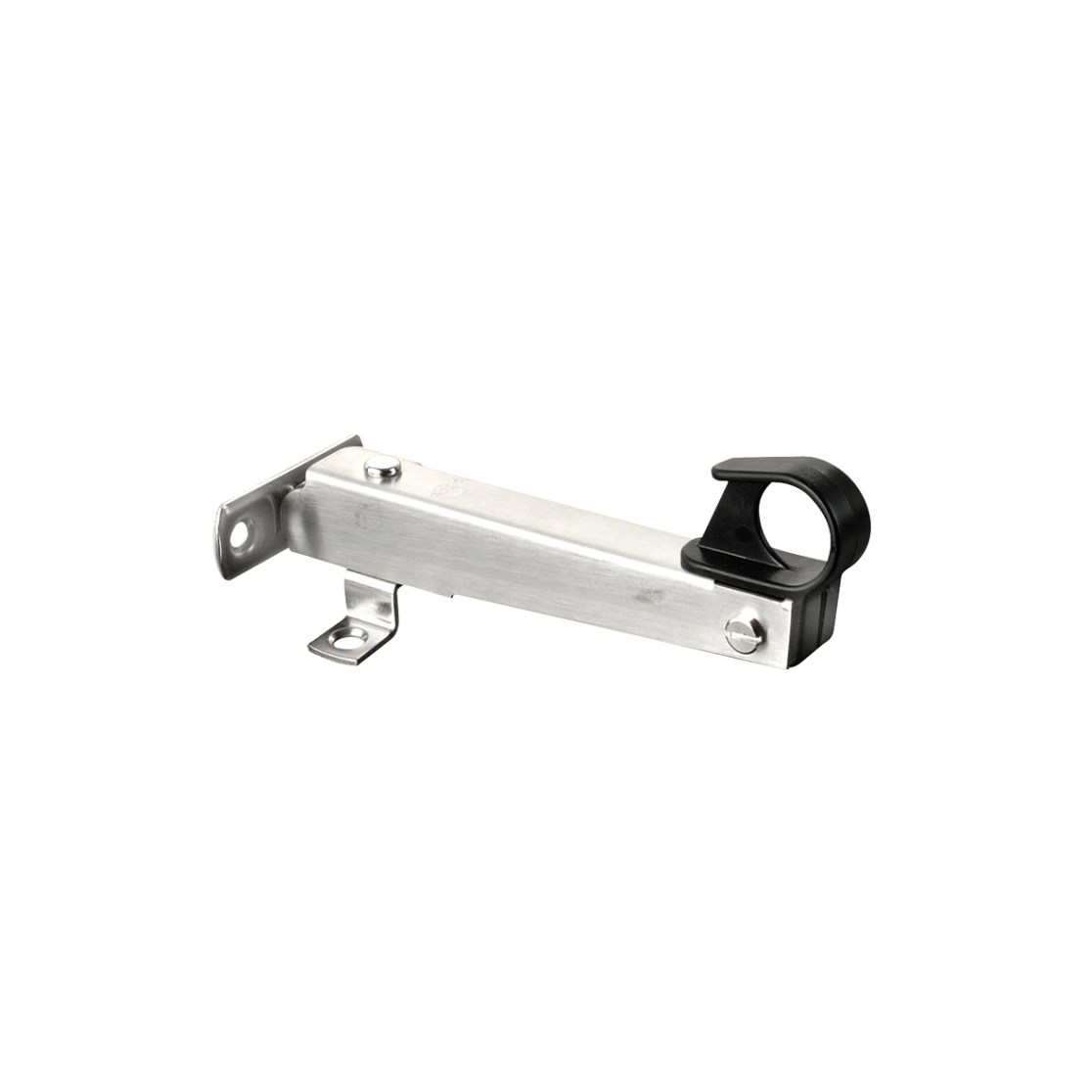

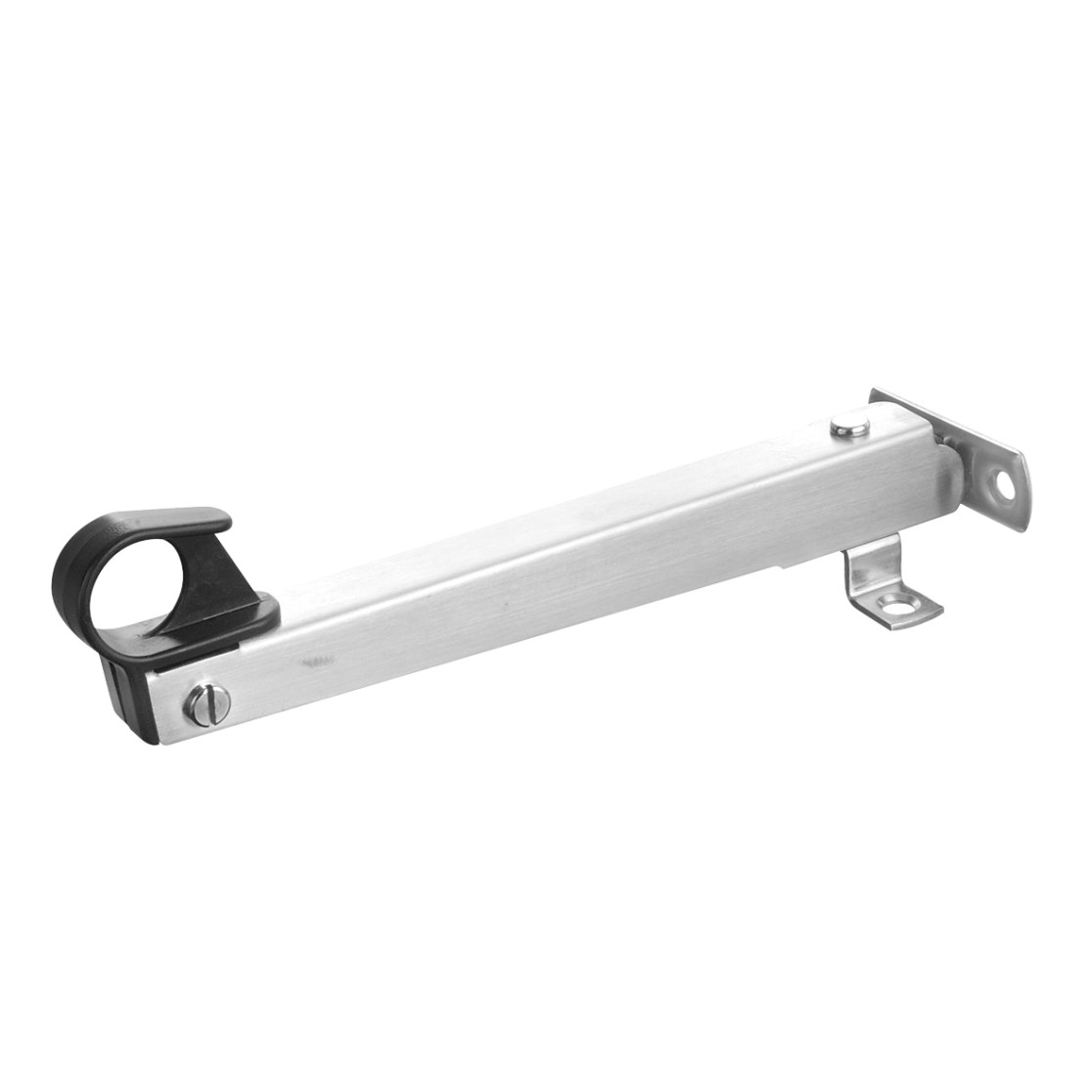

Combi window stay AXAflex Classic

2480-29-81/E
arrow_selector
close

The AXAflex Classic is a classically-styled combi stay and is ideal when using hopper windows to ventilate a room.

  • window stay and closer in one
  • variable with three preferred positions for optimal ventilation
  • maximum ventilation opening 260 mm
  • especially rotatable to the left
  • stainless steel
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type AXAflex Classic
Use for skylights, hopper windows and top-hung windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 196 mm
Product Width 50 mm
Product Height 30 mm
Direction of rotation turning upwards
Maximum gap width 260 mm
Maximum height vertical position 190 mm

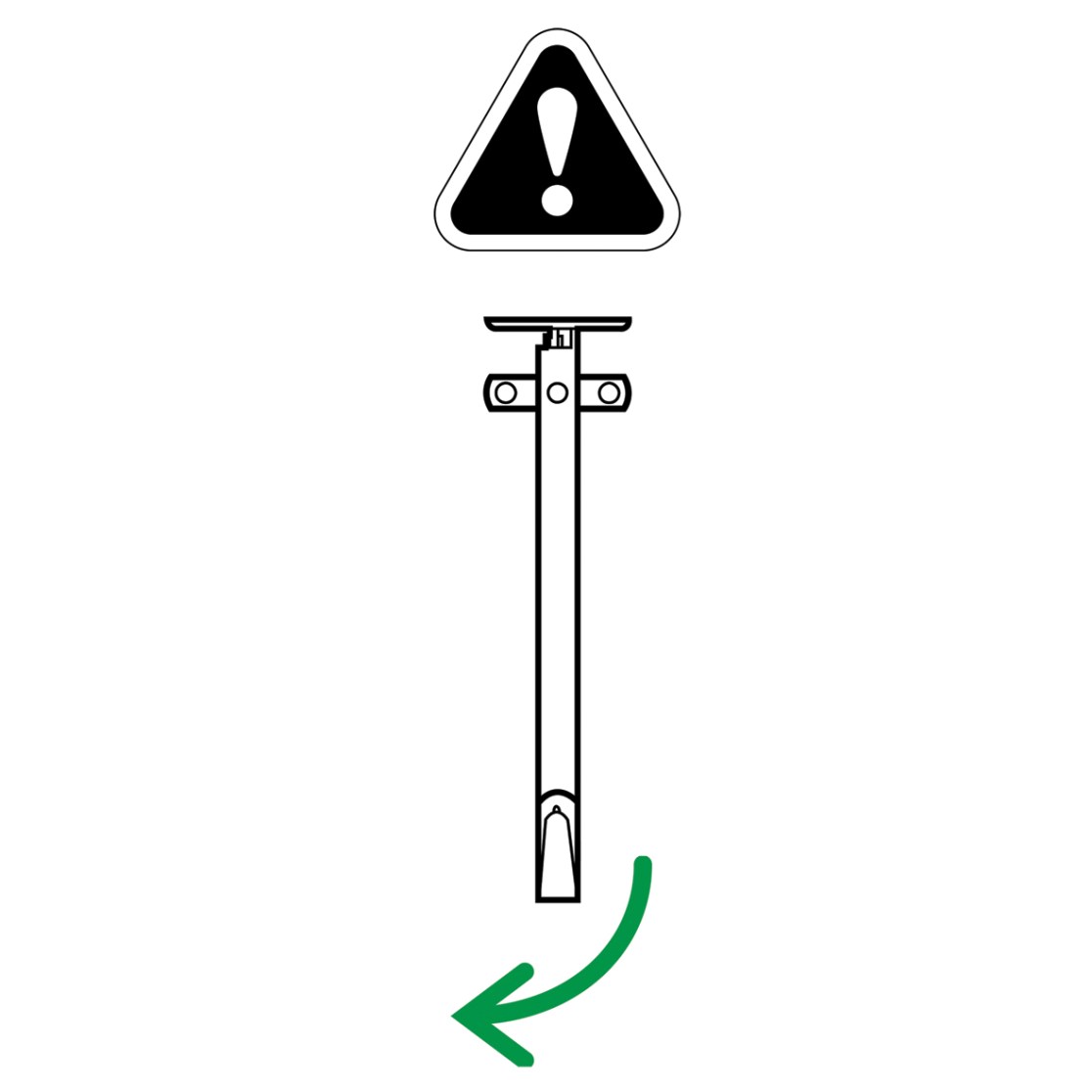

Rotatable to the left
Operation variable with 3 preferred positions for optimal ventilation
Material Stainless steel
Finish Brushed
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False

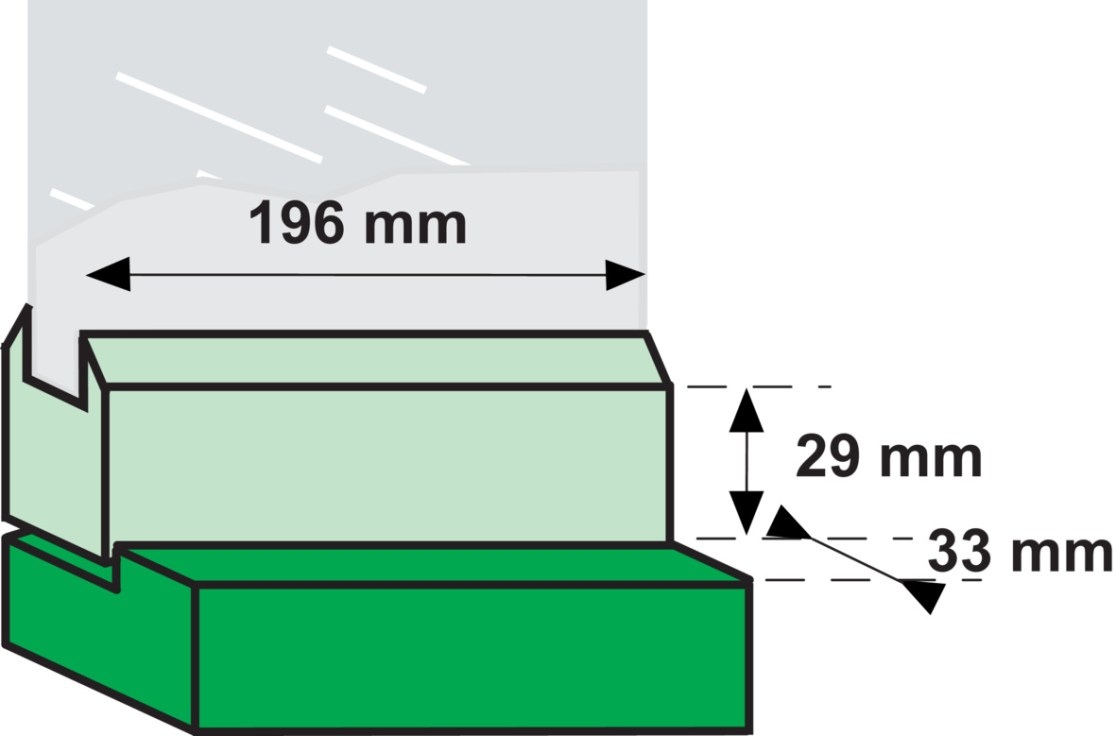

Mounting length 196 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 29 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 165 gr
Pieces per bulk package 15 piece
EAN bulk package 8713249072388
Weight bulk package 2.67 kg
Dimensions bulk package 290 x 200 x 120 mm

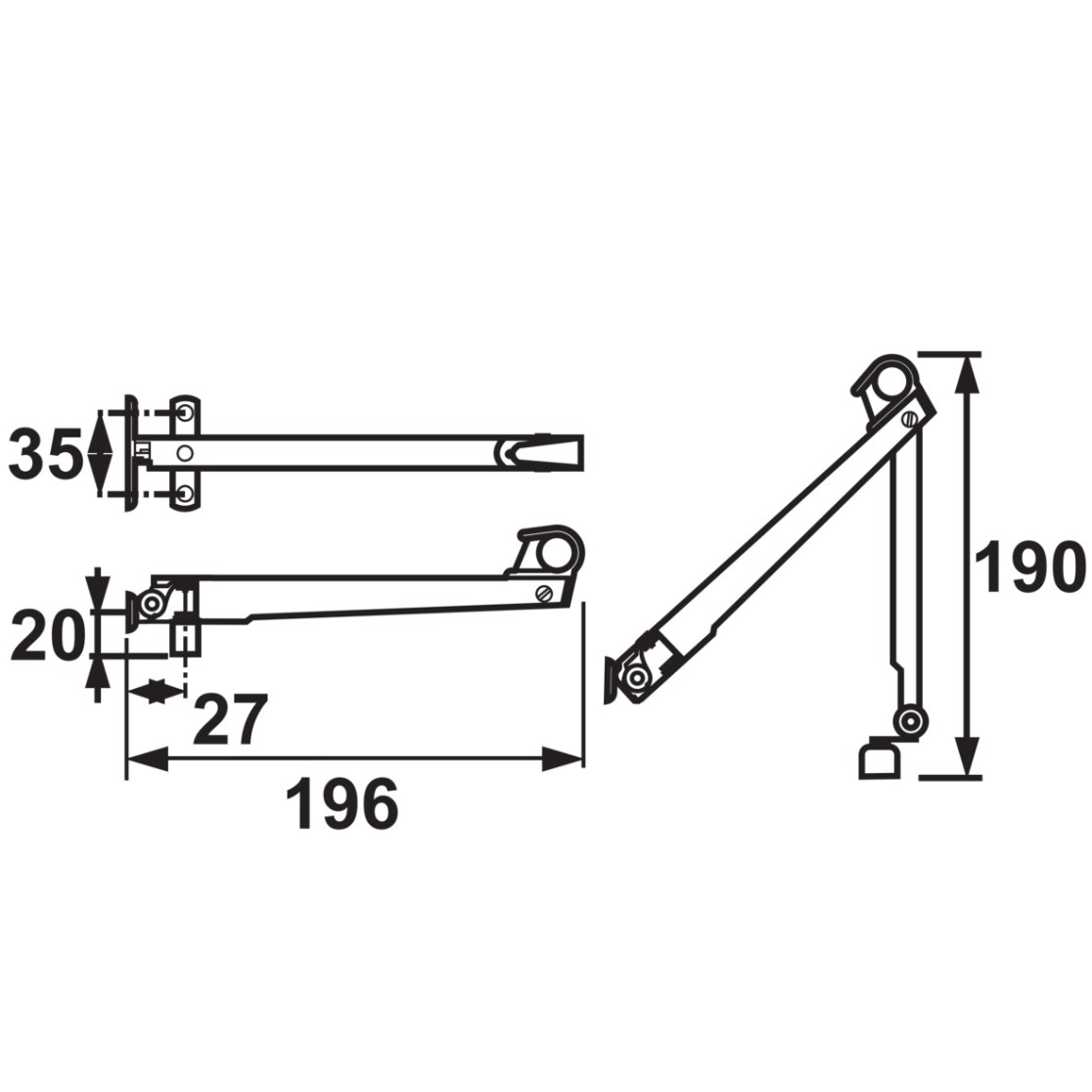

Technical drawings
Combi window stay AXAflex Classic
24802981E

Associated products

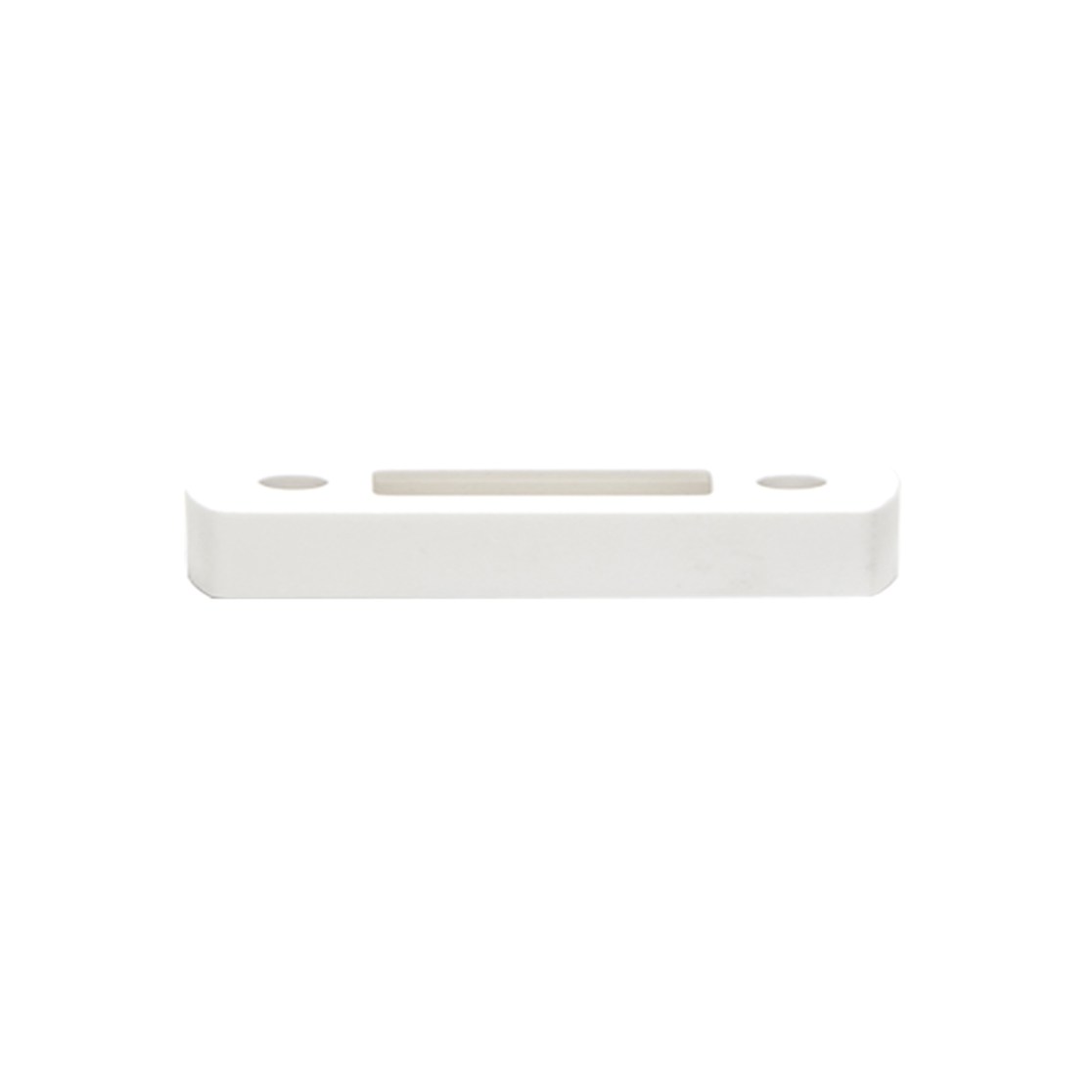

Washer plate combi window stay AXAflex Classic

2490-90-95

Alternative products

Security combi window stay AXAflex Security

2660-20-81/E

Window opener with remote control AXA Remote hopper window

2902-00-98
