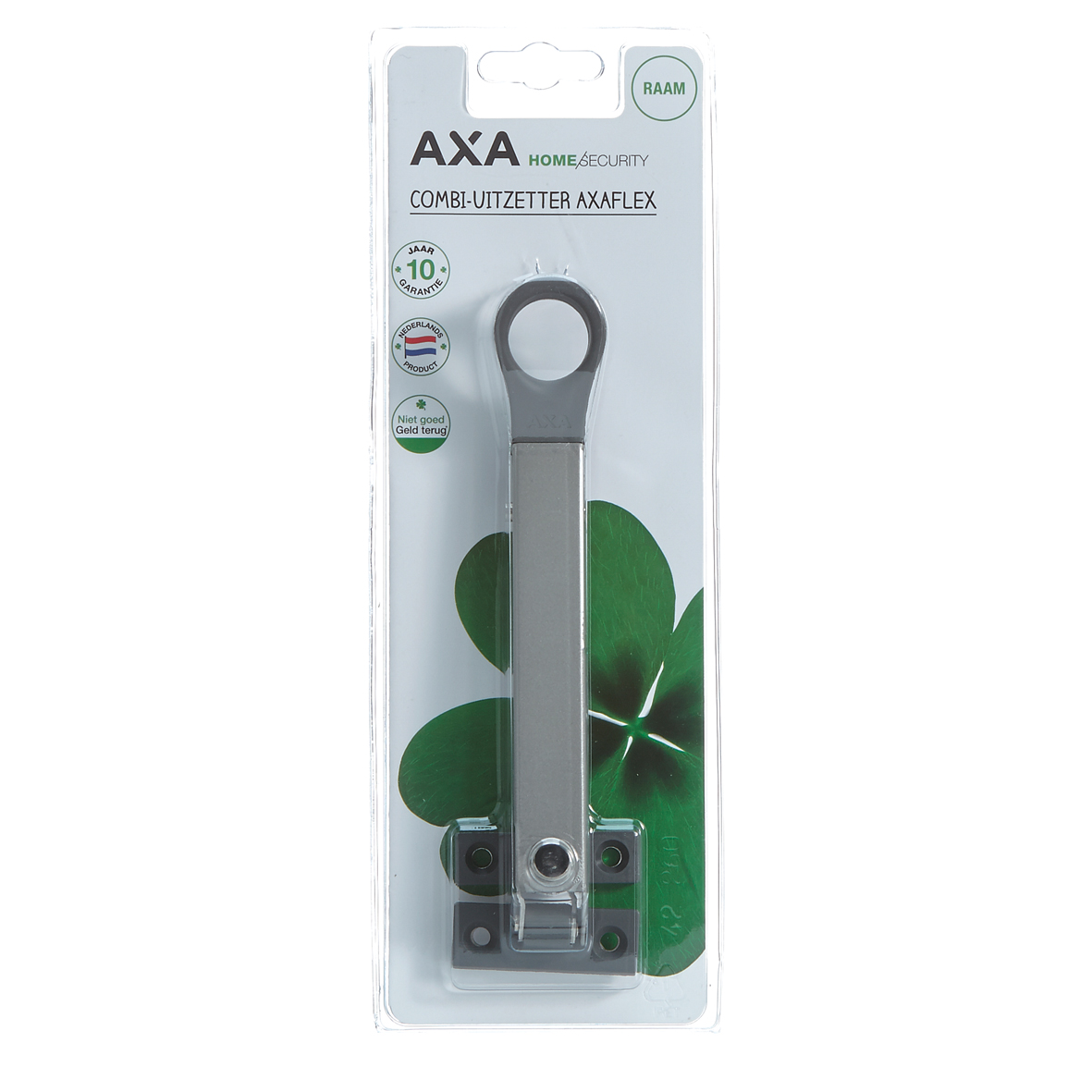

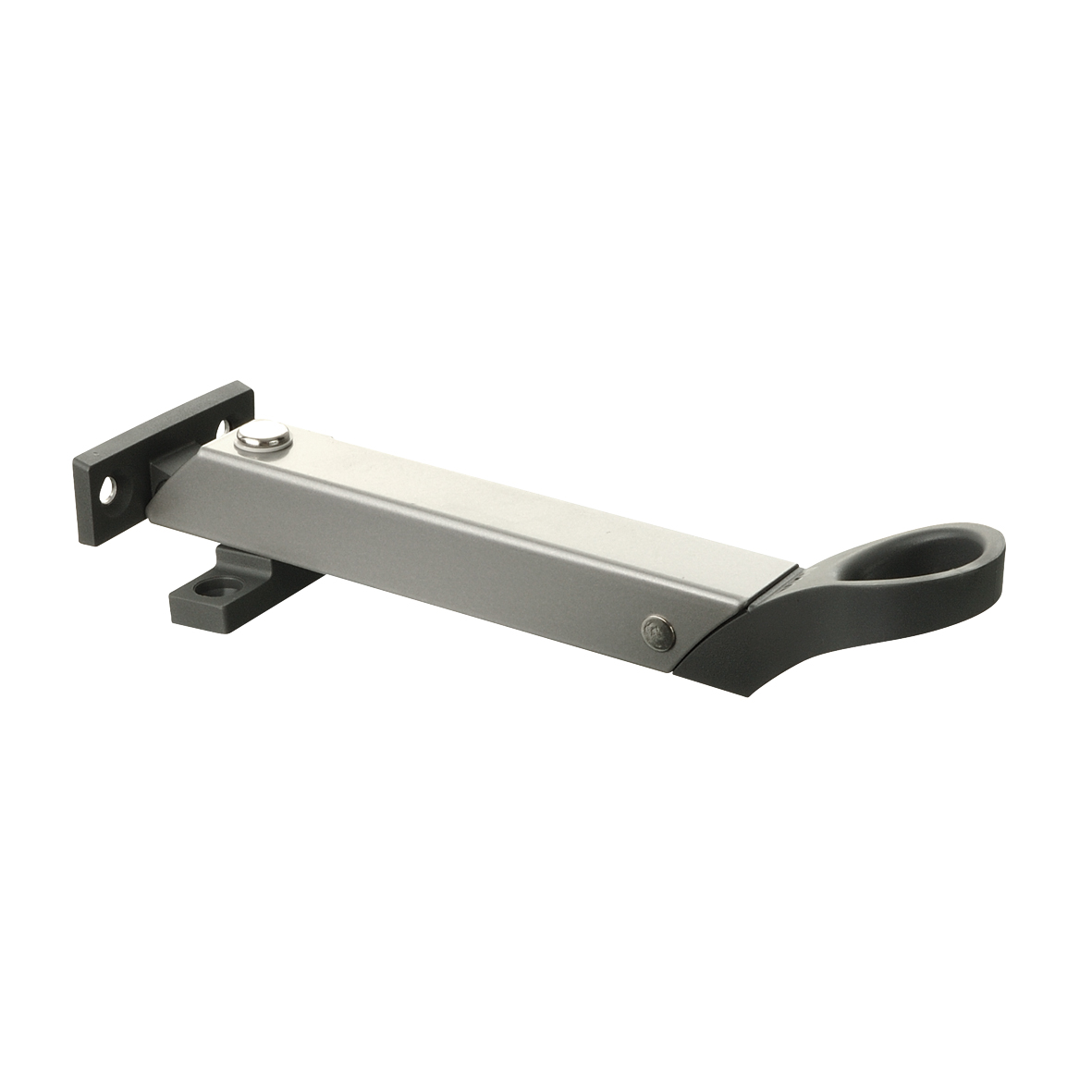

Combi window stay AXAflex

2640-20-49/BL
arrow_selector
close

The AXAflex combi window stay makes it possible to use hopper windows for ventilation purposes.

  • window stay and closer in one
  • variable with three preferred positions for optimal ventilation
  • maximum ventilation opening 160 mm
  • hinged
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type AXAflex
Use for skylights, hopper windows and top-hung windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 50 mm
Product Height 47 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position 160 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation
Material Steel
Finish Grey lacquered
Material 2 Synthetic
Finish 2 Grey
Assembly information
expand_more
Including Mounting Material False
Mounting length 180 mm
Required depth wood frame 34 mm
Window/door mounting width requirement 29 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 179 gr
Pieces per small package 1 piece
EAN small package 8713249222929
Weight small package 0.179 kg
Dimensions small package 275 x 95 x 42 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249222936
Weight bulk package 1.63 kg
Dimensions bulk package 290 x 200 x 120 mm

Technical drawings
Combi window stay AXAflex
26402049BL
