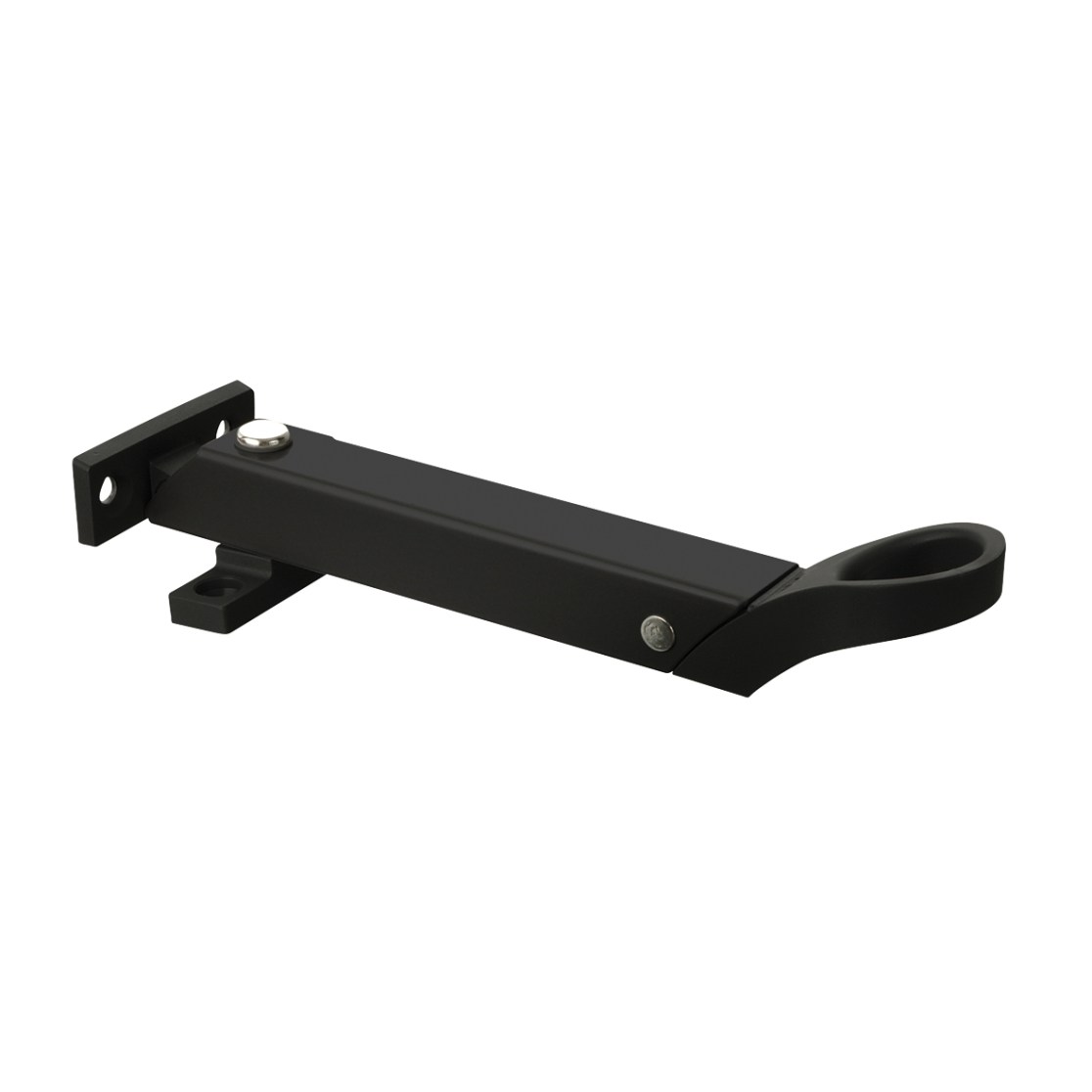

Combi window stay AXAflex

2640-20-56/CP

+

3
arrow_selector
close

The AXAflex combi window stay makes it possible to use hopper windows for ventilation purposes.

  • window stay and closer in one
  • variable with three preferred positions for optimal ventilation
  • maximum ventilation opening 160 mm
  • hinged
Specifications Downloads Technical drawings Associated products Alternative products Similar products
Commercial information
expand_more
Type AXAflex
Use for top-hung windows and skylights
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 180 mm
Product Width 50 mm
Product Height 47 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position Combi-stay 160 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation
Material Steel
Finish Black lacquered
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material True
Mounting length 180 mm
Required depth wood frame 34 mm
Window/door mounting width requirement 29 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more

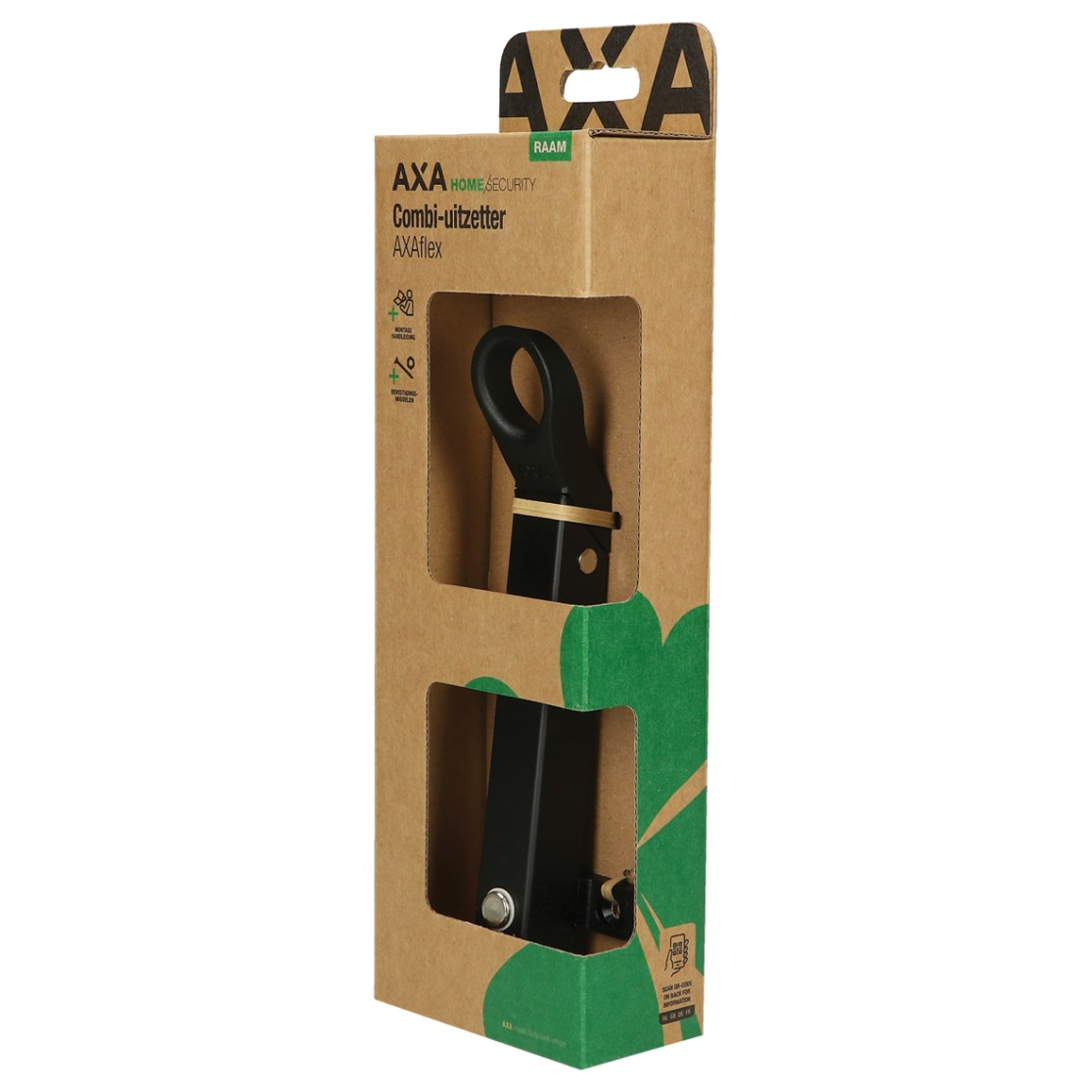

Pieces per small package 1 piece
EAN small package 8713249354644
Weight small package 0.202 kg
Dimensions small package 265 x 85 x 42 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249354651
Weight bulk package 1.4 kg
Dimensions bulk package 275 x 175 x 140 mm

Technical drawings
Combi window stay AXAflex
26402056CP
