Interior door fitting Curve handle Vlinder toilet 63-8

6357-48-91/63E

Stylish fittings for interior doors.

universally usable on doors with a thickness of 38 to 42 mm
complete with attachment materials
simple assembly
can be excellently combined with the AXA Security fittings for exterior doors

Stylish fittings for interior doors.

universally usable on doors with a thickness of 38 to 42 mm
complete with attachment materials
simple assembly
can be excellently combined with the AXA Security fittings for exterior doors

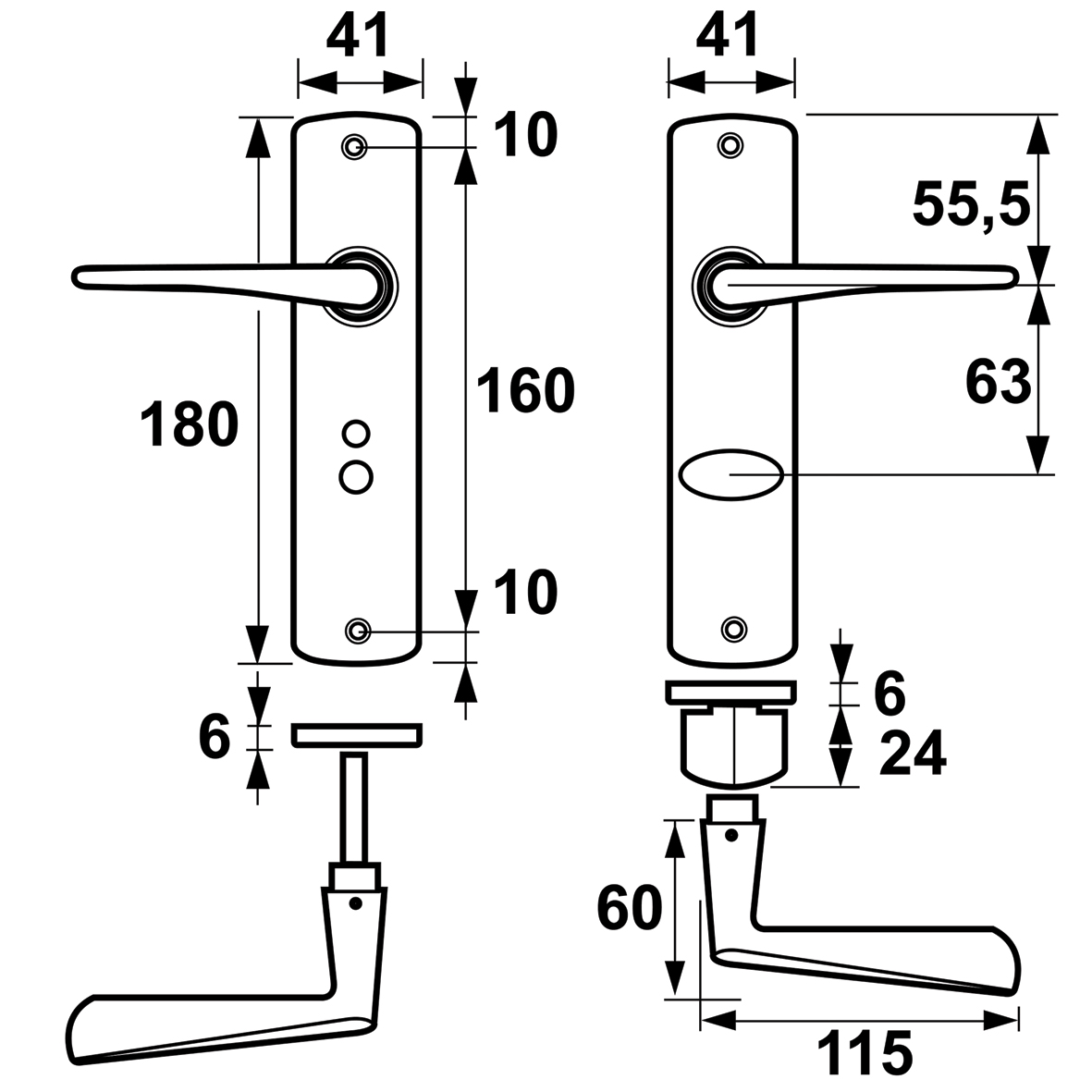

Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece

Commercial information

expand_more

Type Curve handle Vlinder toilet 63-8

Use for interior doors

Safety information

expand_more

Burglarproof False

SKG No

Police Hallmark False

CE Applicable False

Technical information

expand_more

Product Length 180 mm

Product Width 41 mm

Thickness 6 mm

Shape curved

Suitable for door thickness 38 - 42 mm

Handle type Butterfly

Handle length 115 mm

Handle depth 60 mm

Handle assembly pin fix

Heart to heart size type handle hole - toilet operating hole (TL)

Material Aluminum

Finish Anodised F1, natural

Assembly information

expand_more

Including Mounting Material True

Assembly time 15 min

Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 piece
