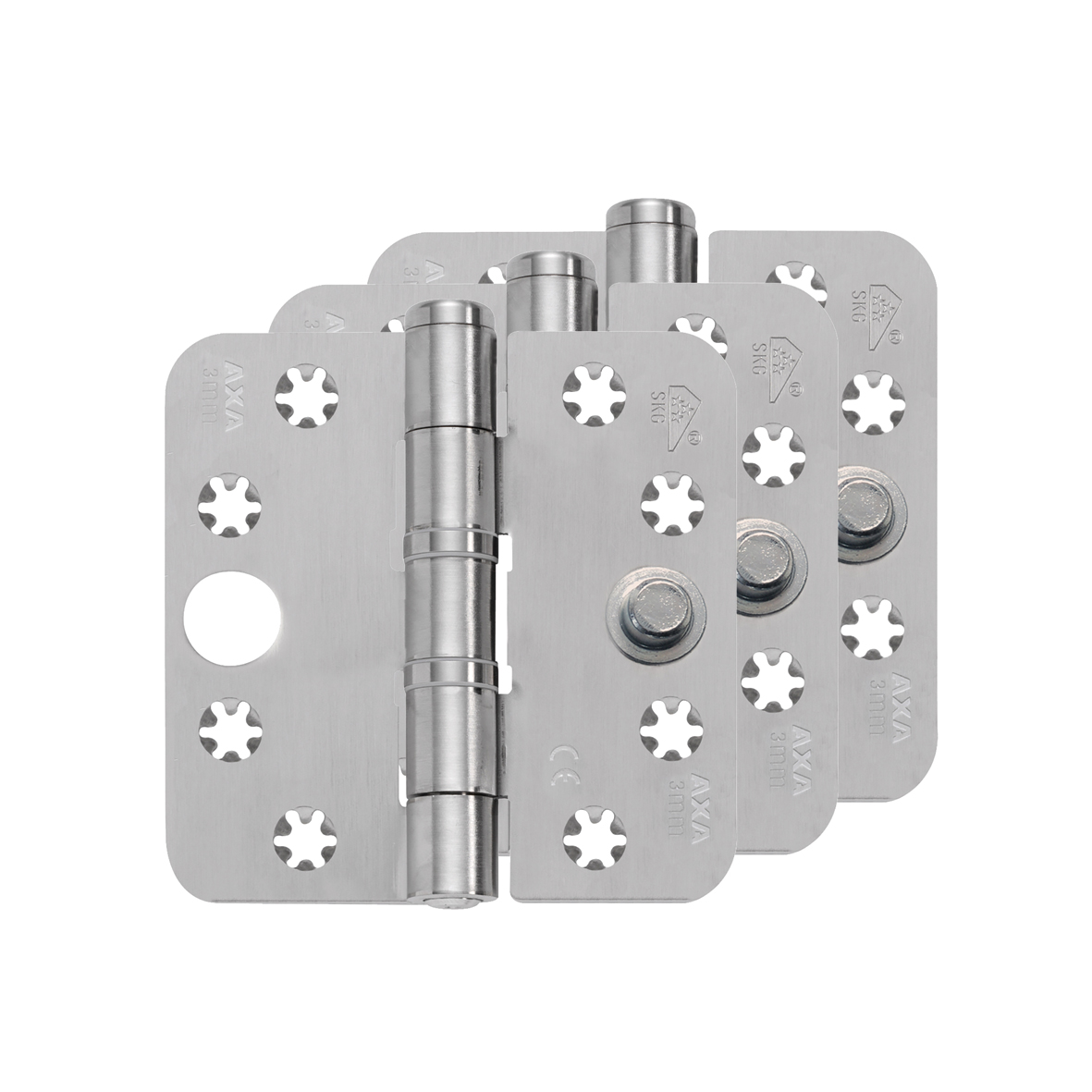

Security hinge Smart disc bearing (3x)
1647-09-81/BLV3

The AXA Smart security disc bearing hinge is a smooth-running, burglar-resistant hinge with a high bearing capacity and special, low-maintenance water and dirt-resistant disc bearings.
- security model with built-in security pin
- high bearing capacity
- very smooth-running thanks to special water and dirt resistant disc bearings
- the special star-shaped screw holes reduce the chance of screw breakage
- stainless steel
- complies with the Police Hallmark for Safe Living and SKG3




The AXA Smart security disc bearing hinge is a smooth-running, burglar-resistant hinge with a high bearing capacity and special, low-maintenance water and dirt-resistant disc bearings.
- security model with built-in security pin
- high bearing capacity
- very smooth-running thanks to special water and dirt resistant disc bearings
- the special star-shaped screw holes reduce the chance of screw breakage
- stainless steel
- complies with the Police Hallmark for Safe Living and SKG3
Specifications
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
Type Smart disc bearing (3x)
Use for windows and exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing disc bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 80 kg
Load bearing capacity 3 hinges 105 kg
Load bearing capacity 4 hinges 125 kg
Material Stainless steel
Finish Brushed
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
Product Weight 786 gr
Pieces per small package 1 piece
EAN small package 8713249225807
Weight small package 0.786 kg
Dimensions small package 215 x 95 x47 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249225814
Weight bulk package 6.48 kg
Dimensions bulk package 290 x 200 x 120 mm
