Window opener with remote control AXA Remote hopper window
2902-00-96

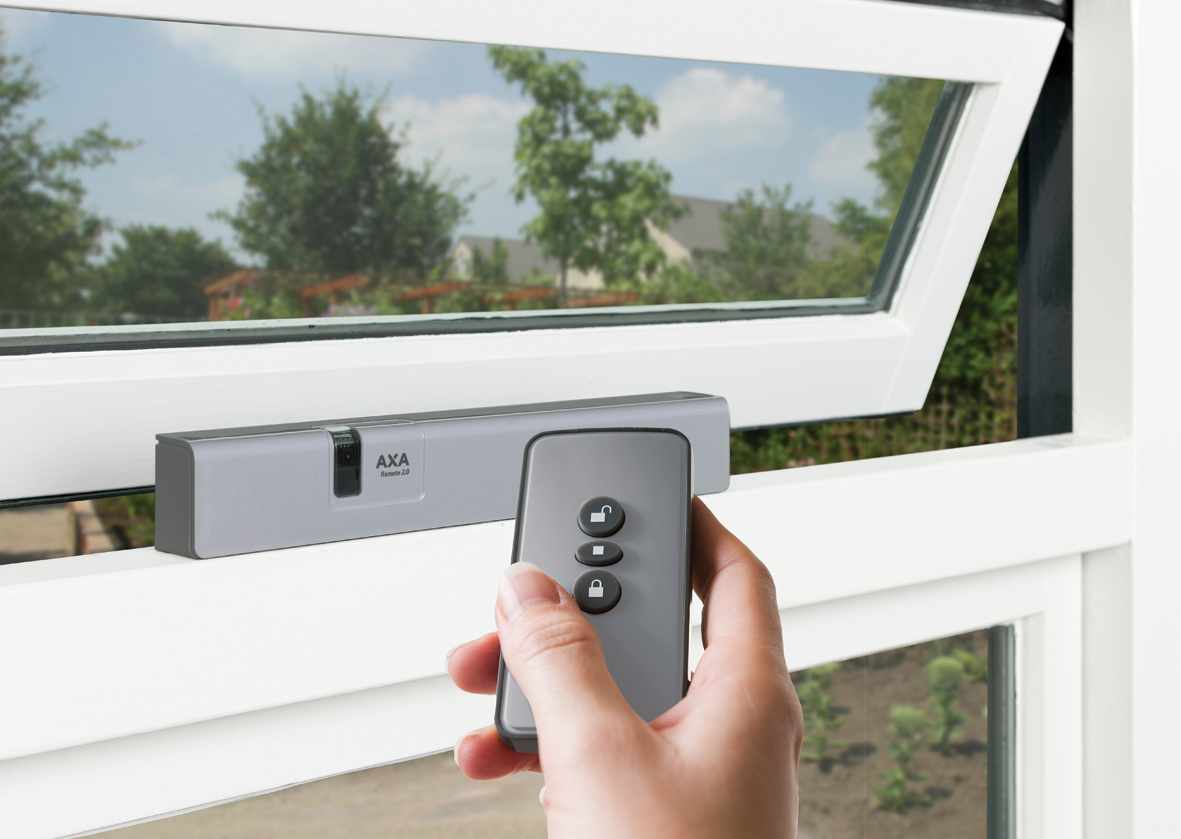

The AXA Remote 2.0â„¢ remote-control window opener makes life easier. No more climbing on unstable stools. The user-friendly remote control can be used to open and close hopper windows.
- natural ventilation for a healthy indoor environment
- maximum ventilation opening 130 mm
- one remote control for a number of windows
- no unattractive wiring
- a high closing force of no less than 400 N
- easy to combine with a fly screen or net curtains
- fast and easy to fit and excellent configuration possibilities
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
- a separate mounting set is available for frames with narrow timber frame (article number 2902-30-54)




The AXA Remote 2.0â„¢ remote-control window opener makes life easier. No more climbing on unstable stools. The user-friendly remote control can be used to open and close hopper windows.
- natural ventilation for a healthy indoor environment
- maximum ventilation opening 130 mm
- one remote control for a number of windows
- no unattractive wiring
- a high closing force of no less than 400 N
- easy to combine with a fly screen or net curtains
- fast and easy to fit and excellent configuration possibilities
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
- a separate mounting set is available for frames with narrow timber frame (article number 2902-30-54)
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 9 pieces
- 4.0 x 40 mm screw: 9 pieces
Commercial information
Type AXA Remote hopper window
Use for skylights, hopper windows and top-hung windows
Safety information
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable True

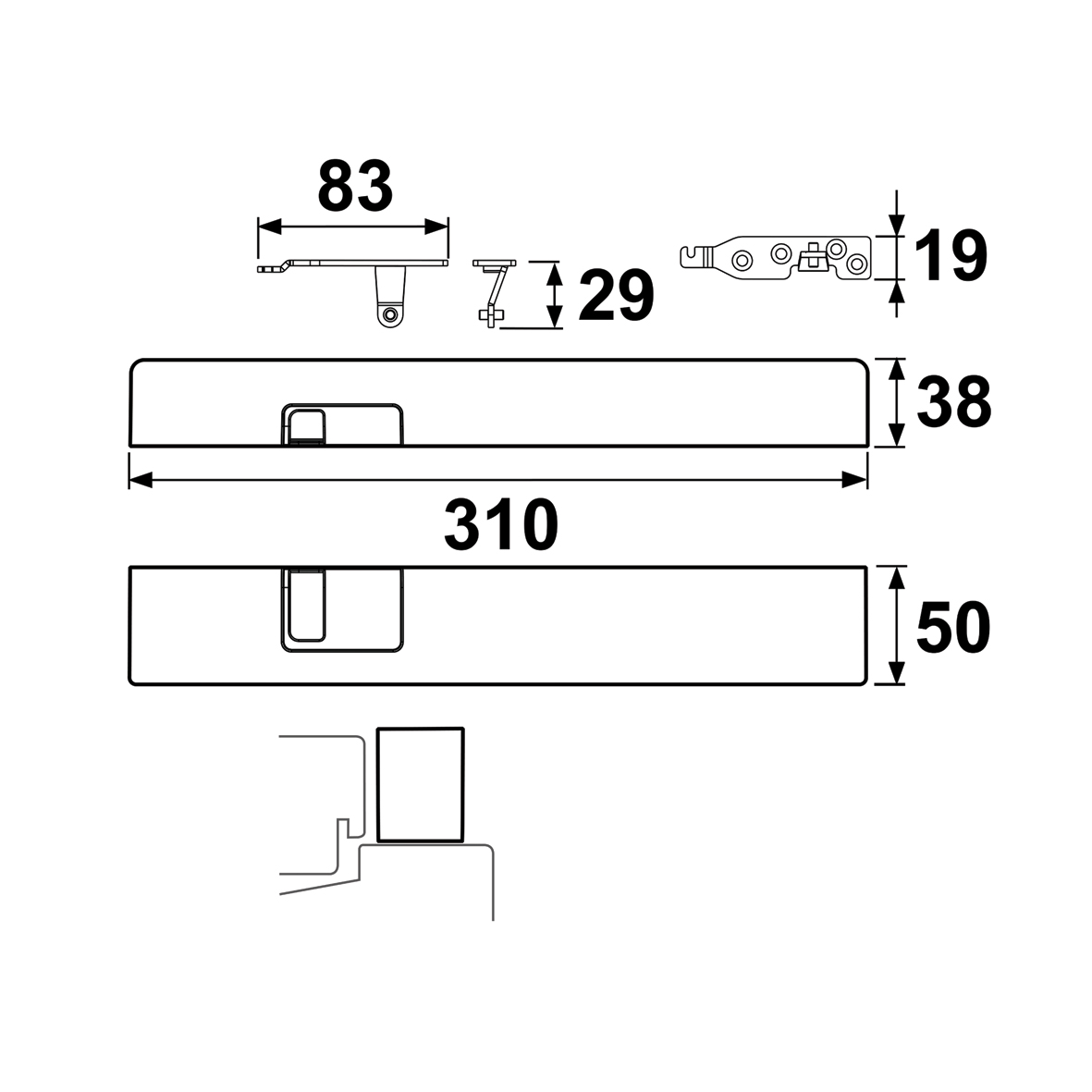

Technical information
Product Length 310 mm
Product Width 38 mm
Product Height 50 mm
Direction of rotation turning upwards
Maximum gap width 130 mm
Operation remote control, variable ventilation
Material Synthetic
Finish Grey
Material 2 zamac
Finish 2 Galvanized
Assembly information
Including Mounting Material True

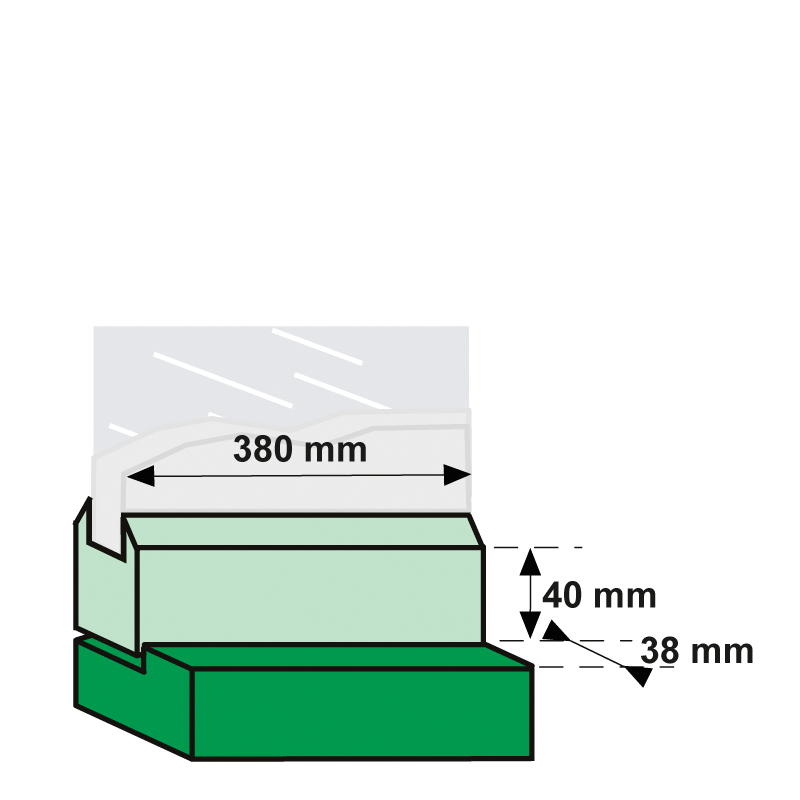

Mounting length 310 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 40 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 9 pieces
- 4.0 x 40 mm screw: 9 pieces
Logistic information
Product Weight 1230 gr
Pieces per small package 1 piece
EAN small package 8713249193045
Weight small package 1.23 kg
Dimensions small package 318 x 105 x 63 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249193052
Weight bulk package 5.04 kg
Dimensions bulk package 328 x 134 x 214 mm
Downloads
Main Image Brochure Installation ManualTechnical drawings
