Striking plate security mortice lock 7425 PC72 DIN right
7425-15-81/72ERStainless steel striking plate
to be combined with mortice lock 7420 or 7425
Stainless steel striking plate
to be combined with mortice lock 7420 or 7425
Specifications
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
- 4.0 x 45 mm screw: 3 pieces
Commercial information
Type 7425 PC72 DIN right
Use for exterior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information

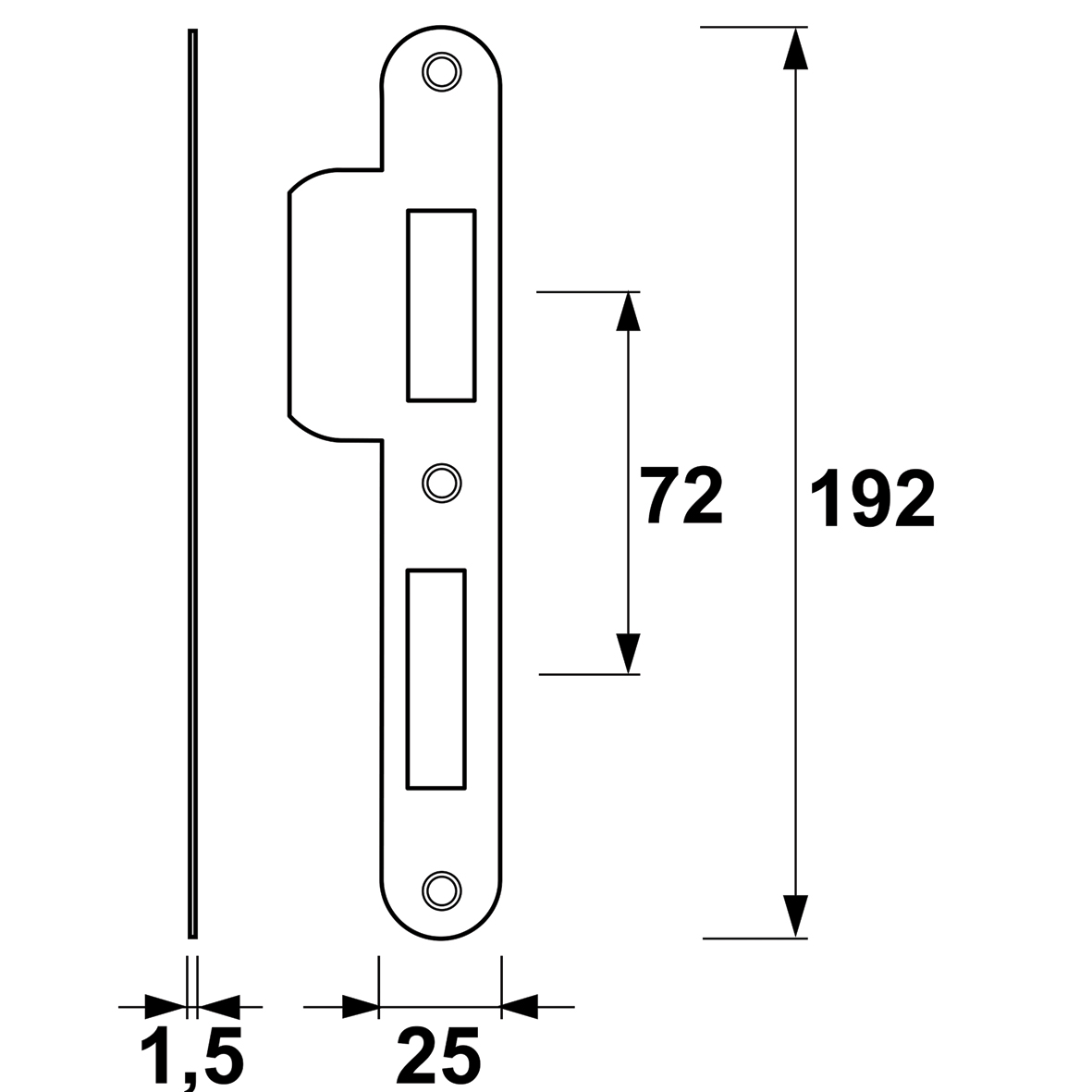

Product Length 192 mm
Product Width 25 mm
Thickness 1.5 mm
Corner shape round corner
Direction of rotation DIN DIN right
Heart to heart size type handle hole - Euro profile hole (PC)
Material Stainless steel
Finish Brushed
Assembly information
Including Mounting Material False
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
- 4.0 x 45 mm screw: 3 pieces
Logistic information
Product Weight 42 gr
Pieces per small package 10 piece
EAN small package 8713249197050
Weight small package 0.428 kg
Pieces per bulk package 100 piece
EAN bulk package 8713249250175
Weight bulk package 4.31 kg
Dimensions bulk package 181 x 81 x 100 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
