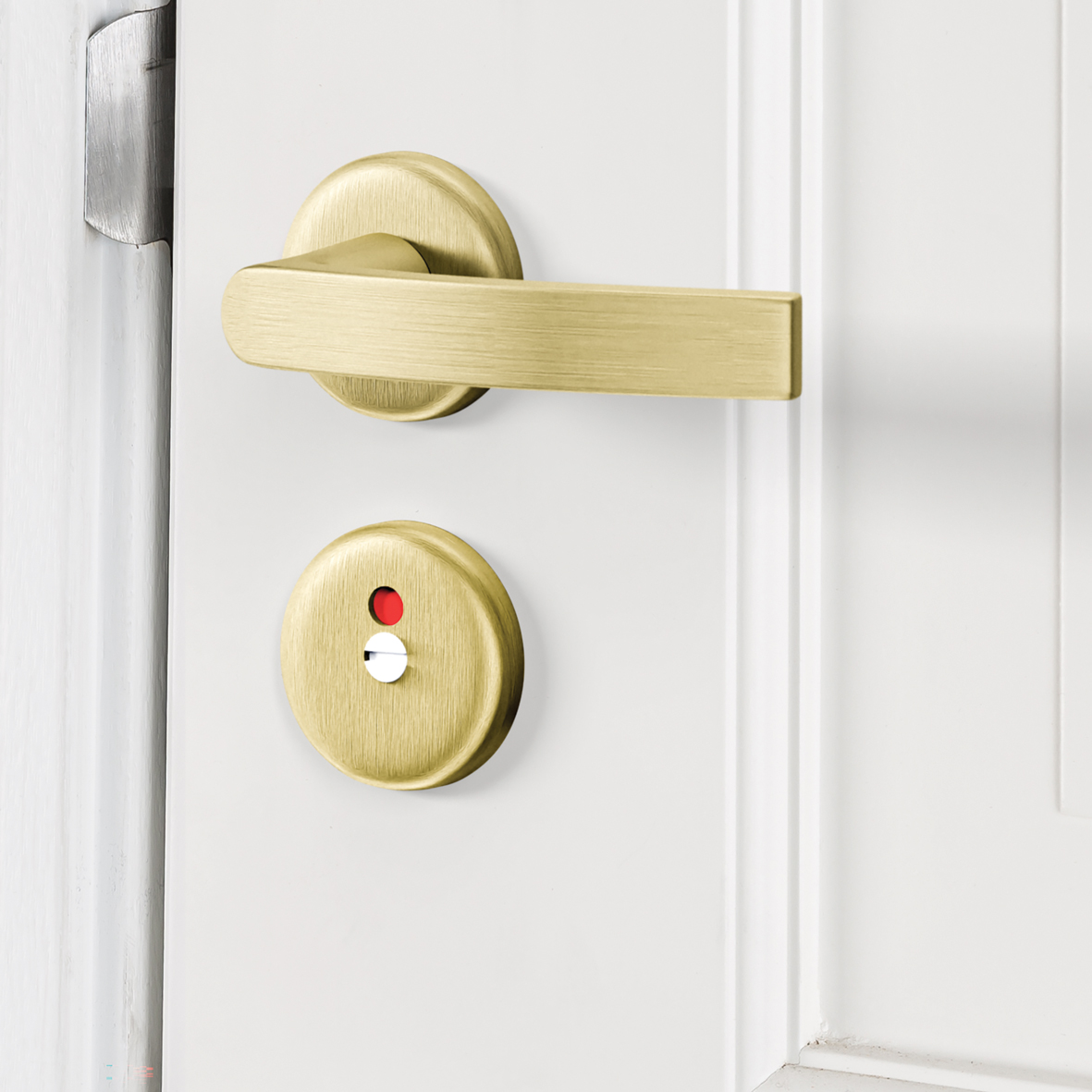

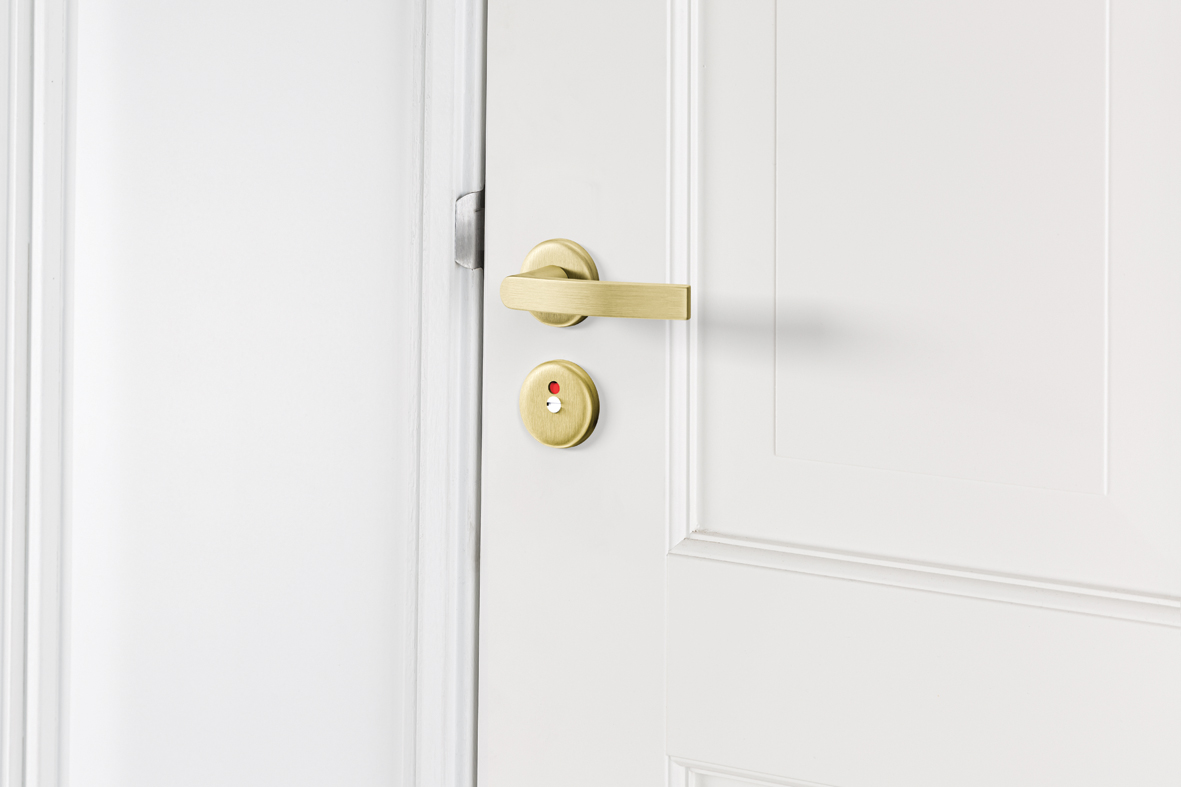

Interior door fitting Klik rosettes round+toilet handle Blok
6229-40-13/EStylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the rosette is clicked over a plastic base plate
- integrated plastic handle bearings
- can be excellently combined with the AXA Security fittings for exterior doors
Stylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the rosette is clicked over a plastic base plate
- integrated plastic handle bearings
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
Type Klik rosettes round+toilet handle Blok
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Thickness 9 mm
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Material Aluminum
Finish Polished anodised F3, gold
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
Product Weight 417 gr
Pieces per small package 1 piece
EAN small package 8713249338446
Weight small package 0.417 kg
Dimensions small package 155 x 130 x 50 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249338453
Weight bulk package 3.53 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads

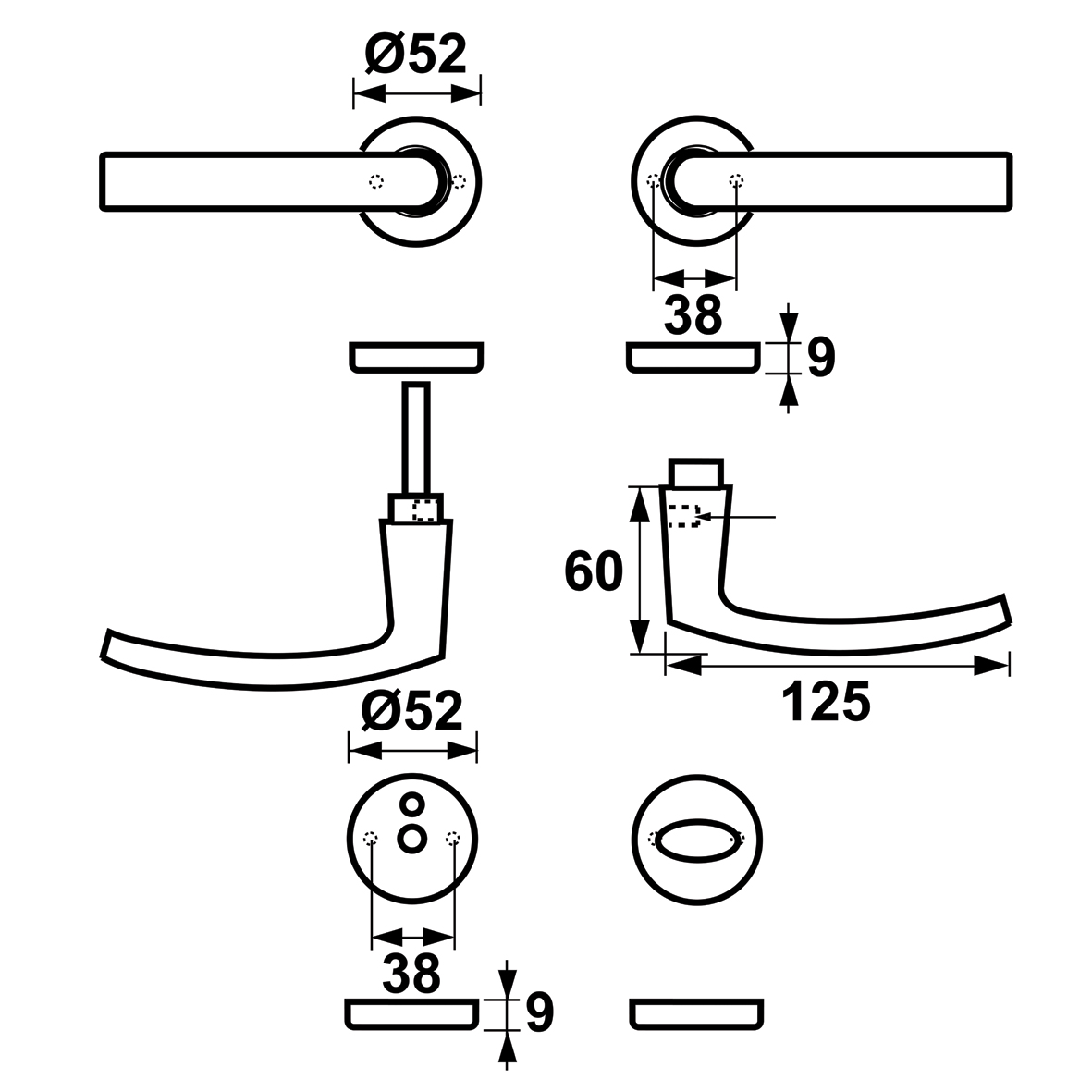

Main Image Environmental Product Declaration (EPD)Technical drawings
