Letterplate Curve Plus

6202-00-11
arrow_selector
close

Clean-lined letter plate with a large opening.

  • for doors, 38 to 54 mm thick
  • stylish appearance
  • thanks to special foam soundproofing, draft and water resistant
  • generous opening
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 ring: 2 pieces
Commercial information
expand_more
Type Curve Plus
Use for front doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 340 mm
Product Height 74 mm
Thickness 33 mm
Suitable for door thickness 38 - 54 mm
Material Aluminum
Finish Polished anodised F1, natural
Material 2 Synthetic
Finish 2 Grey
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 ring: 2 pieces
Logistic information
expand_more
Product Weight 359 gr
Pieces per small package 1 piece
EAN small package 8713249285214
Weight small package 0.41 kg
Dimensions small package 350 x 78 x 38 mm
Pieces per bulk package 28 piece
EAN bulk package 8713249285221
Weight bulk package 12.1 kg
Dimensions bulk package 341 x 365 x 310 mm

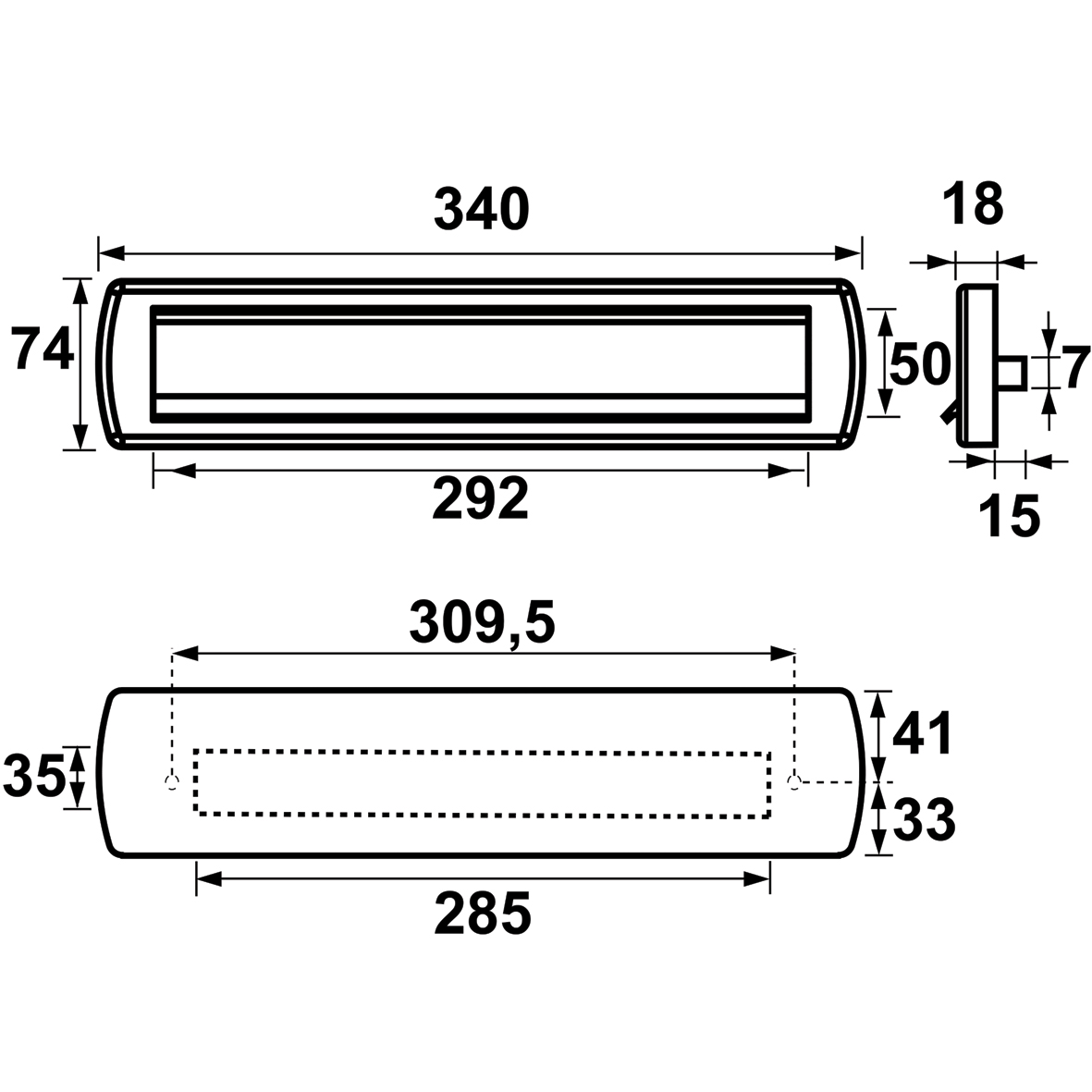

Technical drawings
Letterplate Curve Plus
62020011
