Interior door backplates Curve Klik PC55
6210-20-18/55EStylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- can be excellently combined with the AXA Security fittings for exterior doors


Stylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
Commercial information
Type Curve Klik PC55
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information

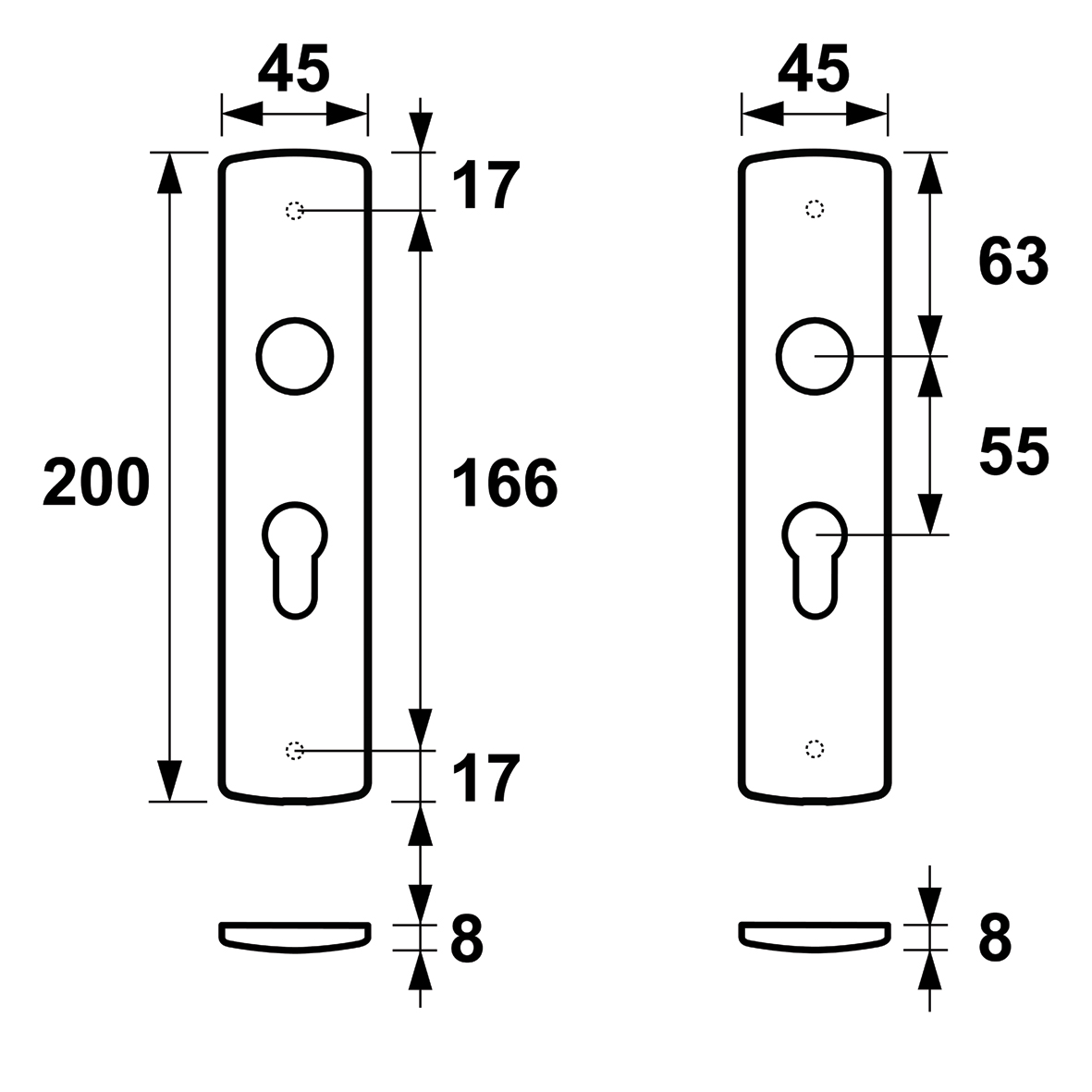

Product Length 200 mm
Product Width 45 mm
Thickness 8 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F8, black
Assembly information
Including Mounting Material False
Assembly time 10 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
Logistic information
Product Weight 151 gr
Pieces per bulk package 15 piece
EAN bulk package 8713249261416
Weight bulk package 2.39 kg
Dimensions bulk package 200 x 150 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
