Security hinge bearing-free
1114-24-23/VE
The AXA bearing-free security hinge is smooth-running and burglar resistant.
- security model with built-in security pin
- smooth-running
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
The AXA bearing-free security hinge is smooth-running and burglar resistant.
- security model with built-in security pin
- smooth-running
- complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Commercial information
Type bearing-free
Use for windows
Safety information
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable True

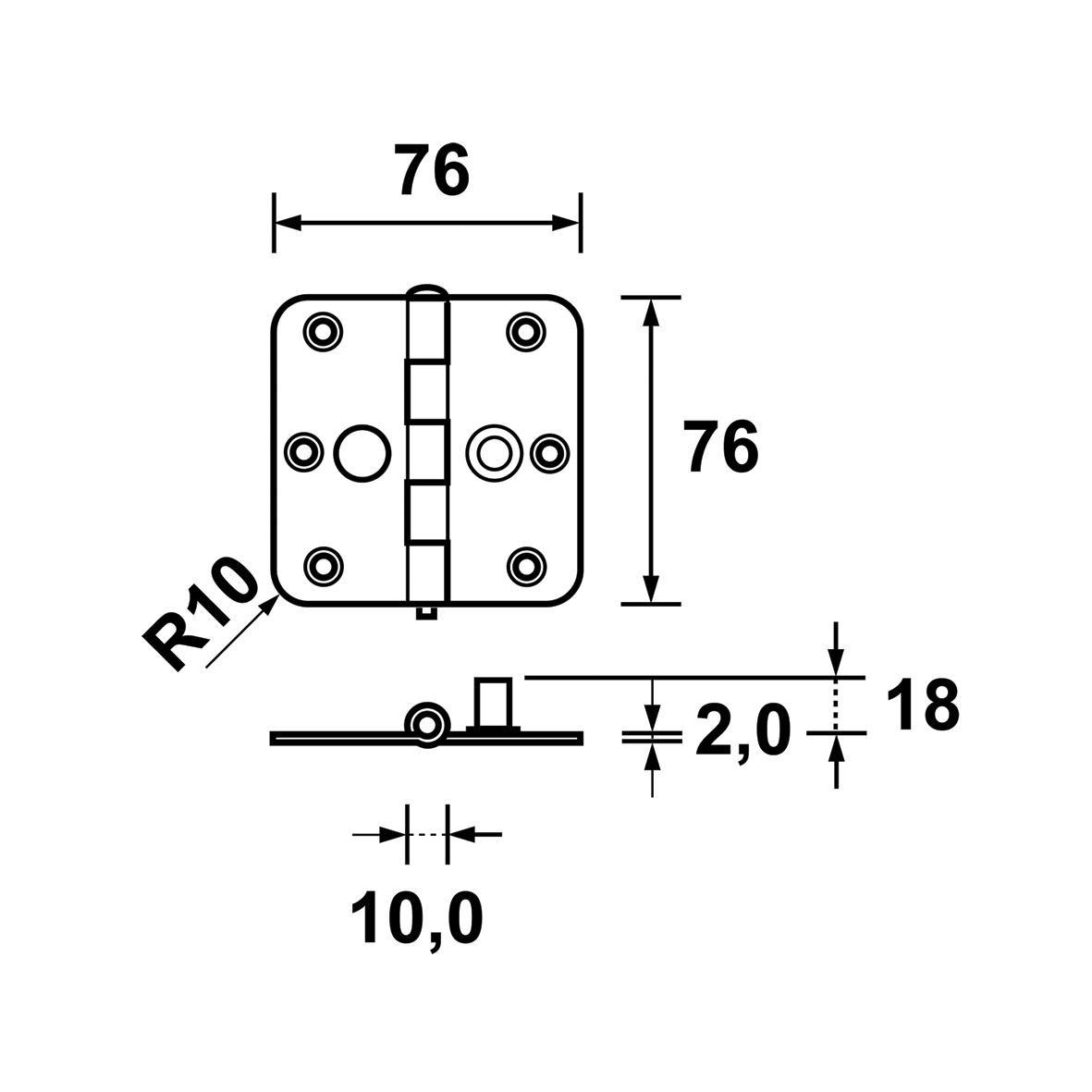

Technical information
Product Width 76 mm
Product Height 76 mm
Thickness 2 mm
Diameter knuckle 10 mm
Corner shape round corner
Bearing bearing-free
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Load bearing capacity 4 hinges 40 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Logistic information
Product Weight 122 gr
Pieces per small package 15 piece
EAN small package 8713249109251
Weight small package 1.88 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249109268
Weight bulk package 7.65 kg
Dimensions bulk package 200 x 150 x 120 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
