Hinge Smart disc bearing

1637-09-81/E
arrow_selector
close

The AXA Smart disc bearing hinge is a smooth-running hinge with a high bearing capacity and special, low-maintenance water and dirt-resistant disc bearings.

  • high bearing capacity
  • very smooth-running thanks to special water and dirt resistant disc bearings
  • the special star-shaped screw holes reduce the chance of screw breakage
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Smart disc bearing
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 14 mm
Corner shape round corner
Bearing disc bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 80 kg
Load bearing capacity 3 hinges 105 kg
Load bearing capacity 4 hinges 125 kg
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 246 gr
Pieces per small package 6 piece
EAN small package 8713249133836
Weight small package 1.51 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249133843
Weight bulk package 12.31 kg
Dimensions bulk package 290 x 200 x 120 mm

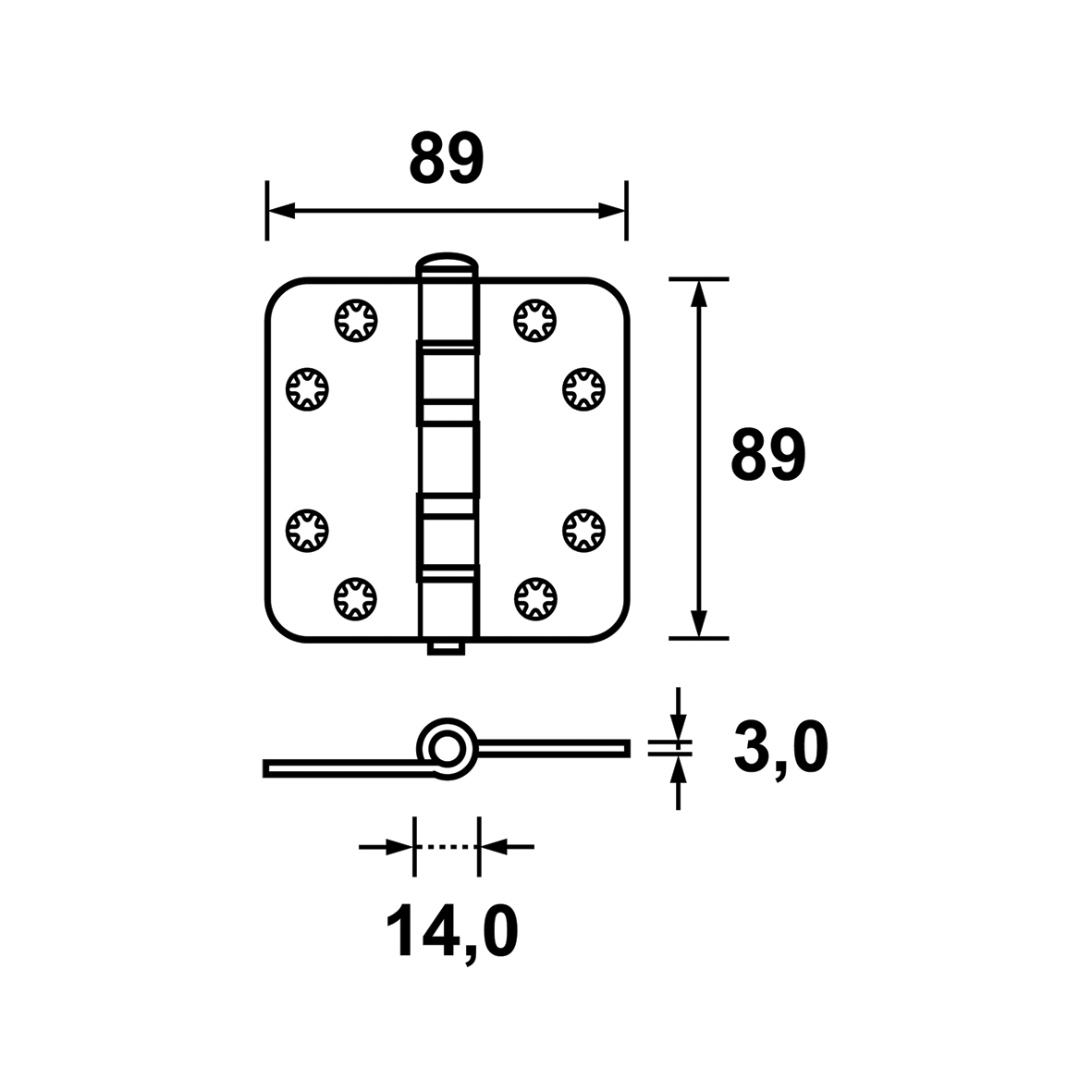

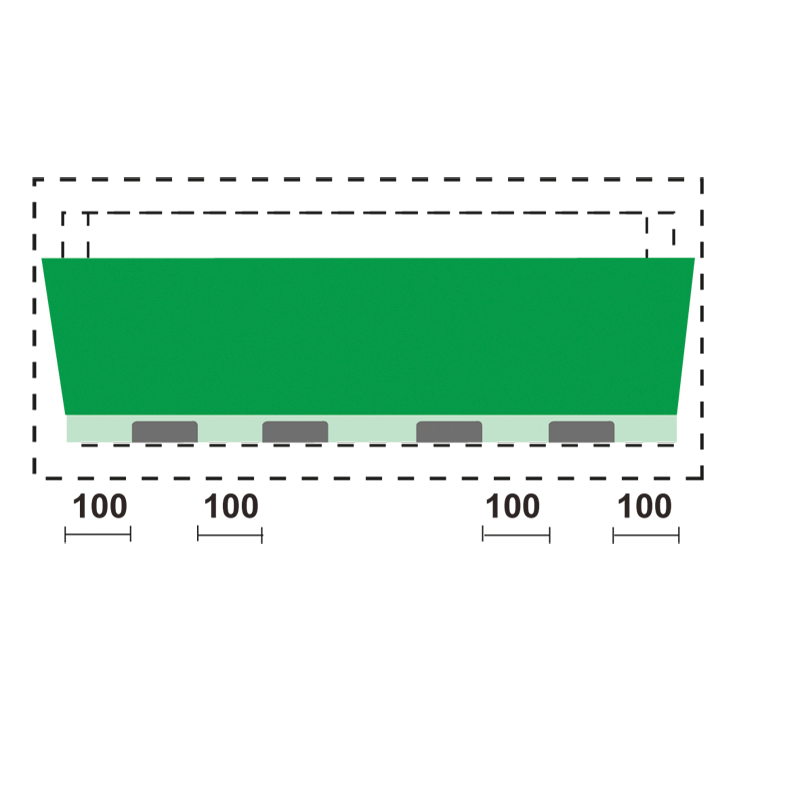

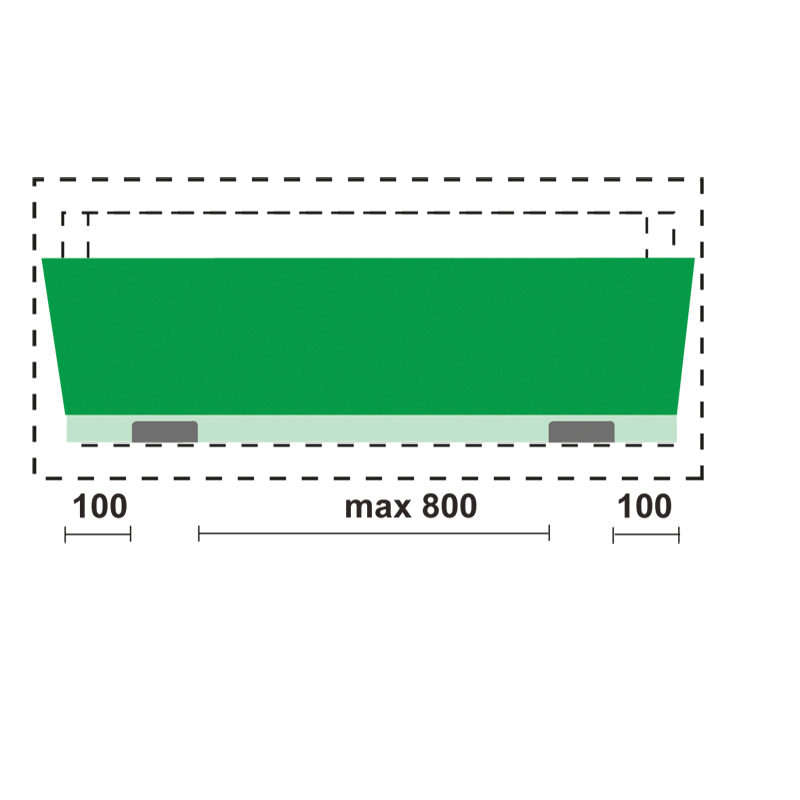

Technical drawings
Hinge Smart disc bearing
16370981E
