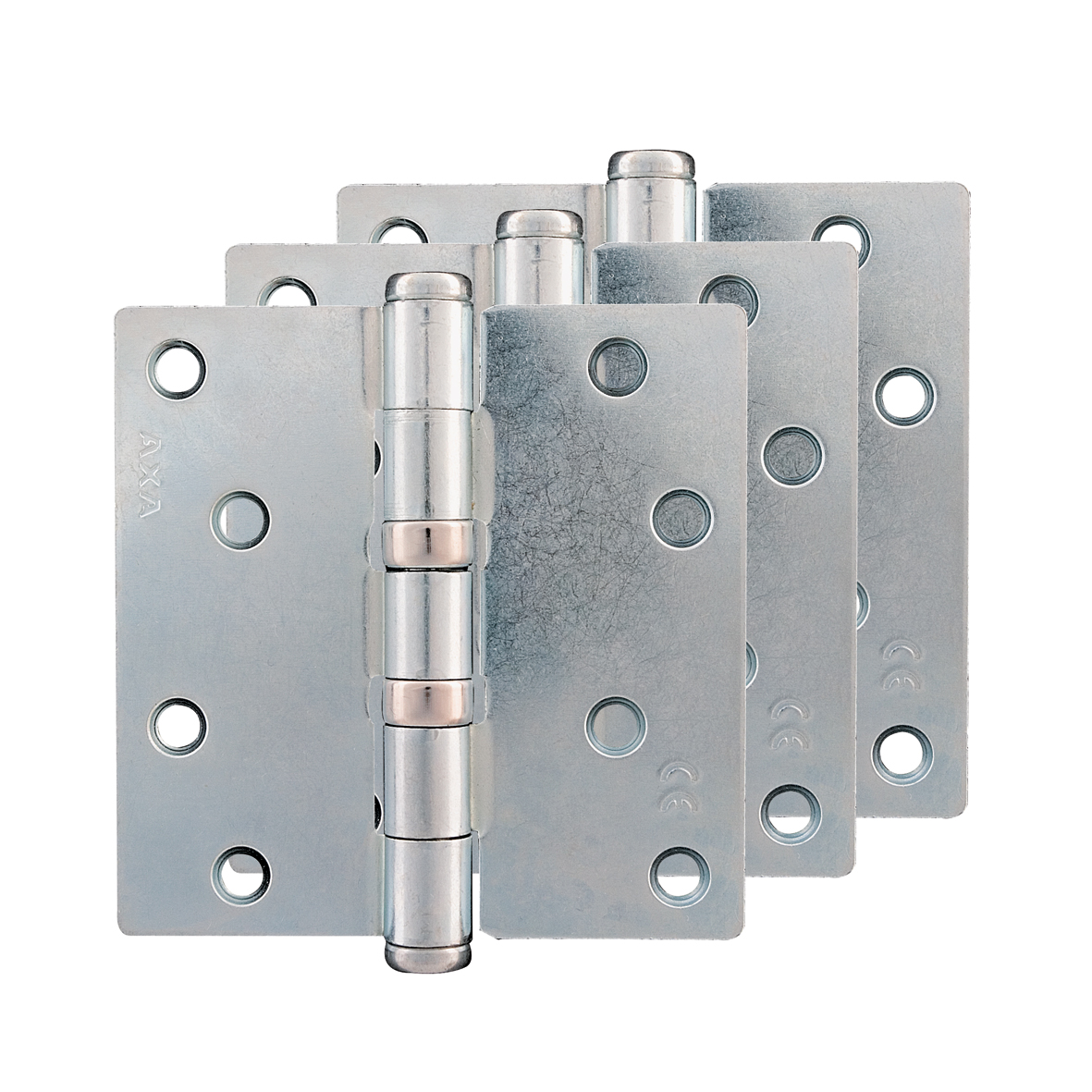

Hinge ball bearing (3x)

1531-25-23/CP3
arrow_selector
close

The AXA ball bearing hinge is a smooth-running hinge with a high bearing capacity.

  • with ball bearings
  • smooth-running
  • high bearing capacity
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing (3x)
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 12 mm
Corner shape right angle
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 65 kg
Load bearing capacity 4 hinges 80 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249361734
Dimensions small package 165 x 85 x 56 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249361741
Dimensions bulk package 225 x 175 x 120 mm
