Door control 7510

7510-36-56/4
arrow_selector
close

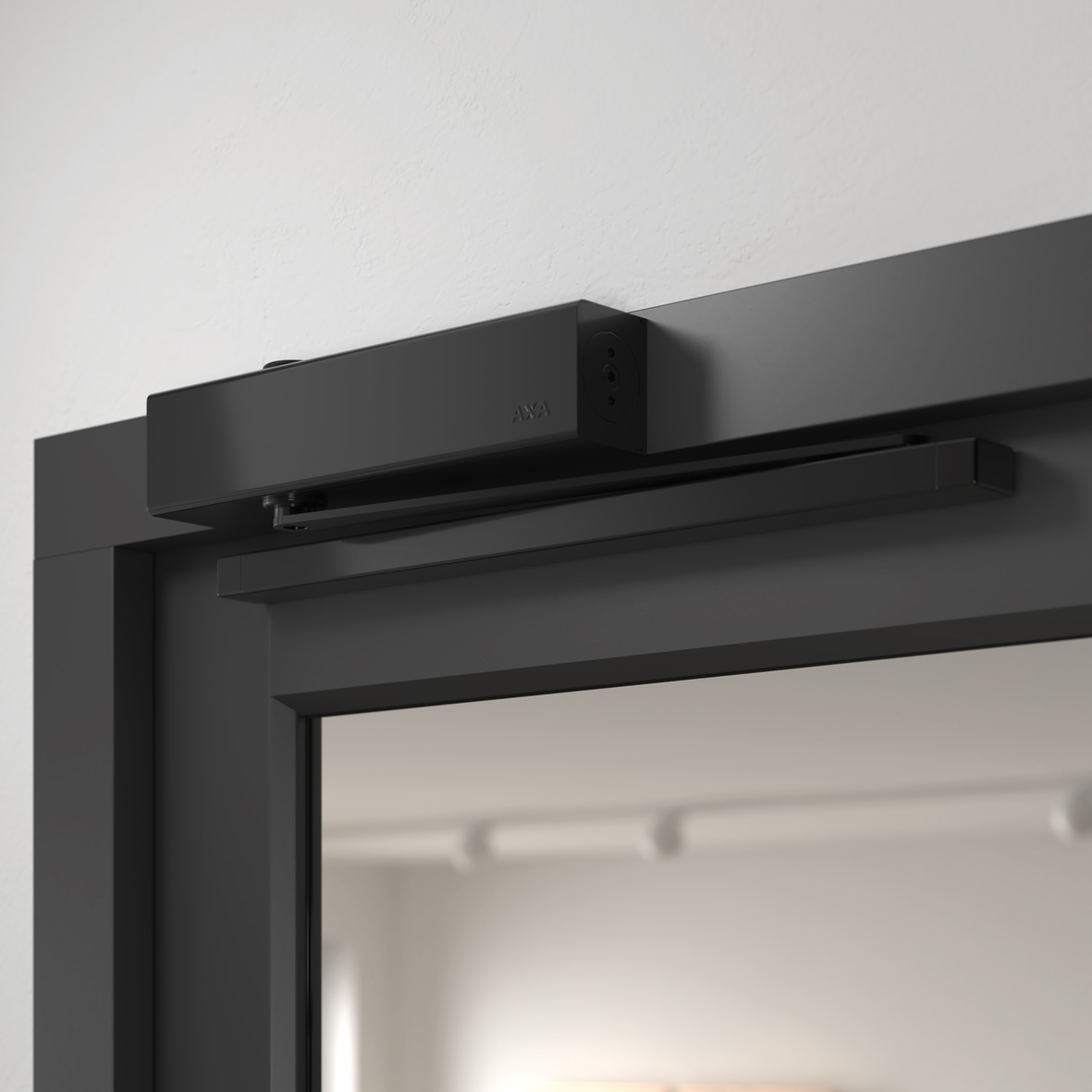

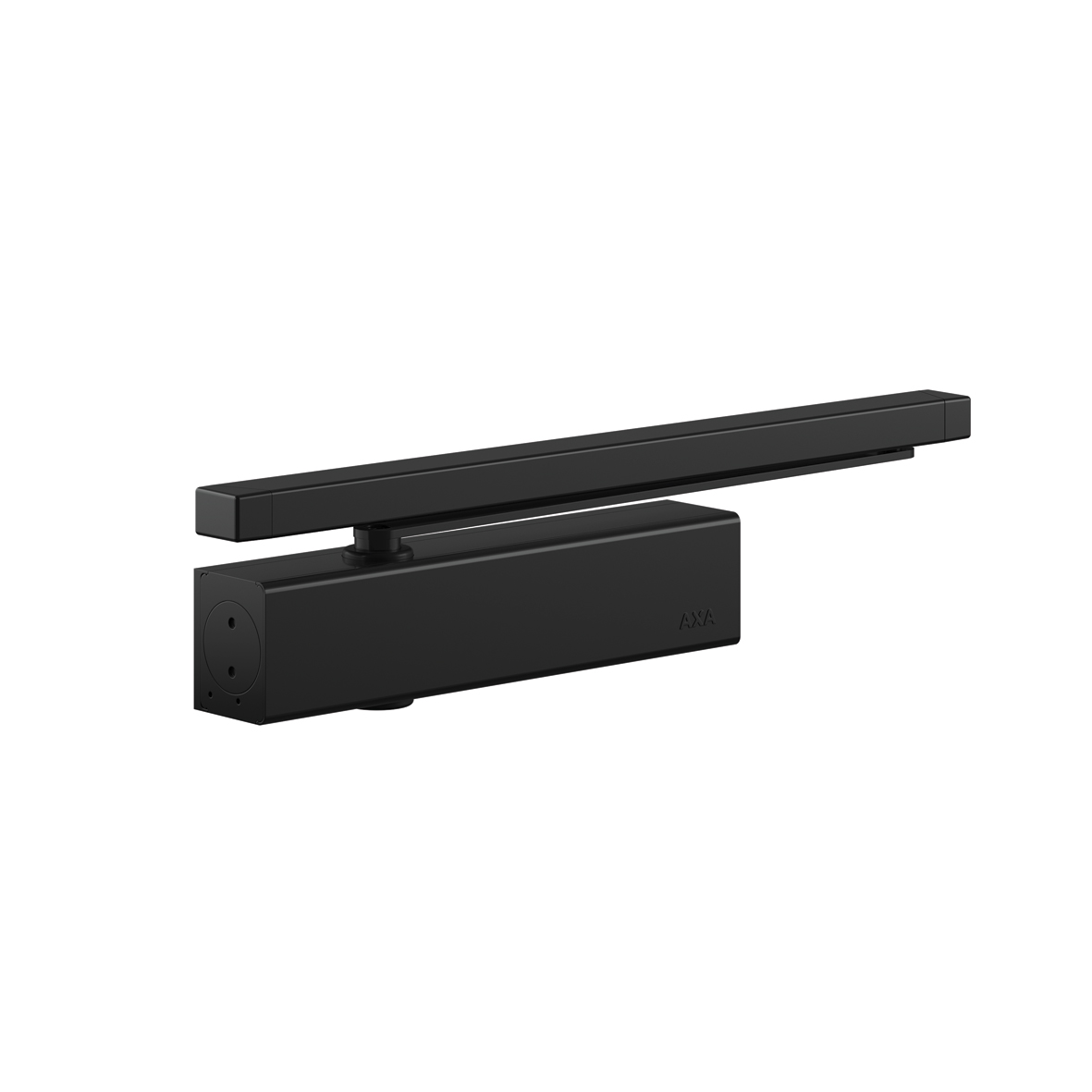

Power door control with adjustable opening damping, closing delay, closing speed and latch action.

  • with track-arm
  • closing force: 3-6
  • adjustable closing speed
  • adjustable latch action
  • adjustable opening damping
  • adjustable closing delay
  • built-in temperature compensation: -15° to +40° C
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 20 bolt: 1 pièces
- M5 x 15 bolt: 4 pièces
- M5 x 18 bolt: 2 pièces
- 5.0 x 30 mm screw: 2 pièces
- 5.5 x 33 mm screw: 2 pièces
- M6 nut: 1 pièce
- M6 ring: 1 pièce
Commercial information
expand_more
Type 7510
Use for doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 287 mm
Product Width 50 mm
Product Height 63 mm
Maximum door width 1400 mm
Maximum door weight 120 kg
Type of arm track arm
Axle technique rack and pinion mechanism
Angles adjustable closing speed 180 - 10 º
Angles adjustable latch action 10 º
Angles adjustable delayed action 180 - 70 º
Angles adjustable backcheck 70 - 180 º
(adjustable) closing power door assembly (pull side) max 6
(adjustable) closing power door assembly (pull side) min 3
(adjustable) closing power frame assembly (push side) max 6
(adjustable) closing power frame assembly (push side) min 3
User intensity medium
Material Cast iron
Finish Black lacquered
Material 2 Steel
Finish 2 Black lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting position track-arm pull side regular
Mounting position track-arm push side transom
Assembly time 30 min
Recommended Mounting Materials
- M6 x 20 bolt: 1 pièces
- M5 x 15 bolt: 4 pièces
- M5 x 18 bolt: 2 pièces
- 5.0 x 30 mm screw: 2 pièces
- 5.5 x 33 mm screw: 2 pièces
- M6 nut: 1 pièce
- M6 ring: 1 pièce
Logistic information
expand_more
Product Weight 3595 gr
Pieces per small package 1 piece
EAN small package 8713249353005
Weight small package 3.753 kg
Dimensions small package 486 x 128 x 60 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249353012
Weight bulk package 23 kg
Dimensions bulk package 550 x 280 x 200 mm
