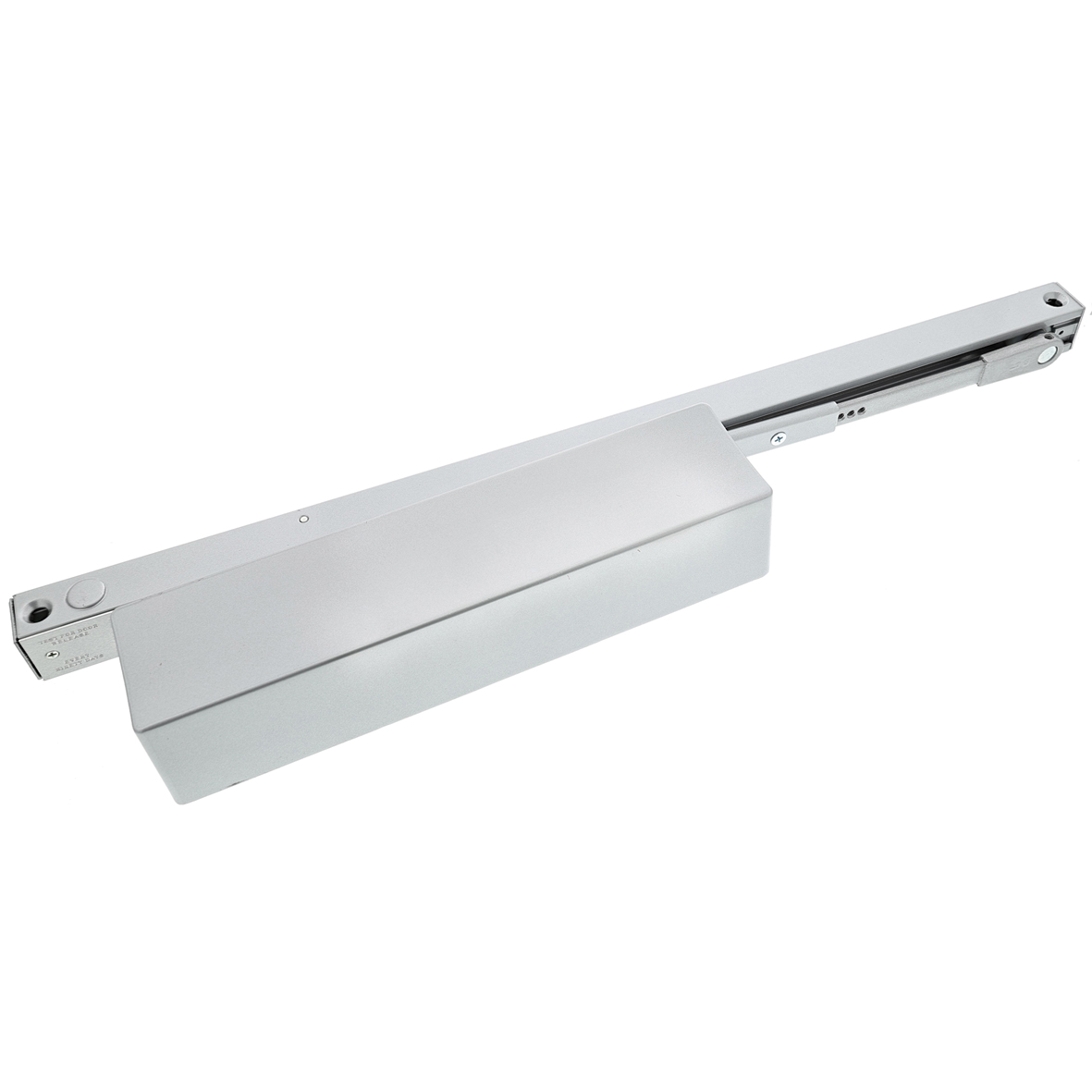

Door control 2720BDTE

7BR-2720-BDTEASE
arrow_selector
close

Power door control with adjustable closing speed, opening damping, latch action and closing delay

  • with slide track
  • with cam action technology for smooth opening and reliable closing
  • adjustable closing force: 3-5
  • adjustable closing speed
  • adjustable latch action
  • adjustable opening damping
  • electromagnetic hold-open
  • adjustable closing delay
  • power supply 24V
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type 2720BDTE
Use doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 289 mm
Product Width 57 mm
Product Height 70 mm
Maximum door width 1250 mm
Maximum door weight 100 kg
Type of arm track arm
Axle technique cam action mechanism
Angles adjustable closing speed 70 - 7 º
Angles adjustable latch action 7 º
Angles adjustable delayed action 120 - 70 º
Angles adjustable backcheck 70 - 100 º
(adjustable) closing power door assembly (pull side) max 5
(adjustable) closing power door assembly (pull side) min 3
User intensity high
Material Cast iron
Finish Galvanized
Material 2 Steel
Finish 2 Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting position track-arm pull side regular
Assembly time 30 min
Logistic information
expand_more
Product Weight 5744 gr
Pieces per small package 1 piece
EAN small package 5050640028983
Weight small package 6.148 kg
Dimensions small package 591 x 115 x 100 mm
Pieces per bulk package 4 piece
Weight bulk package 25 kg
Dimensions bulk package 600 x 247 x 215 mm

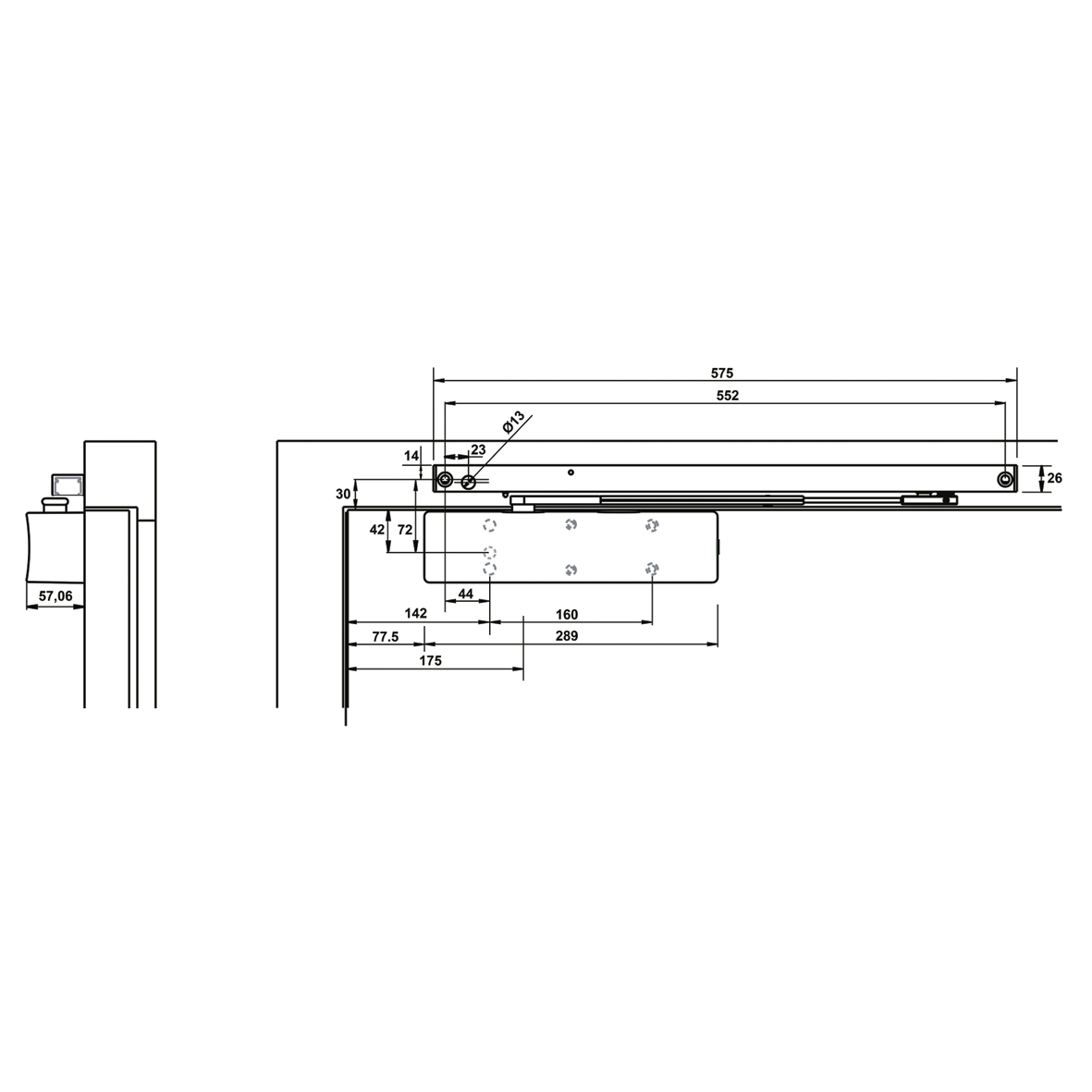

Technical drawings
