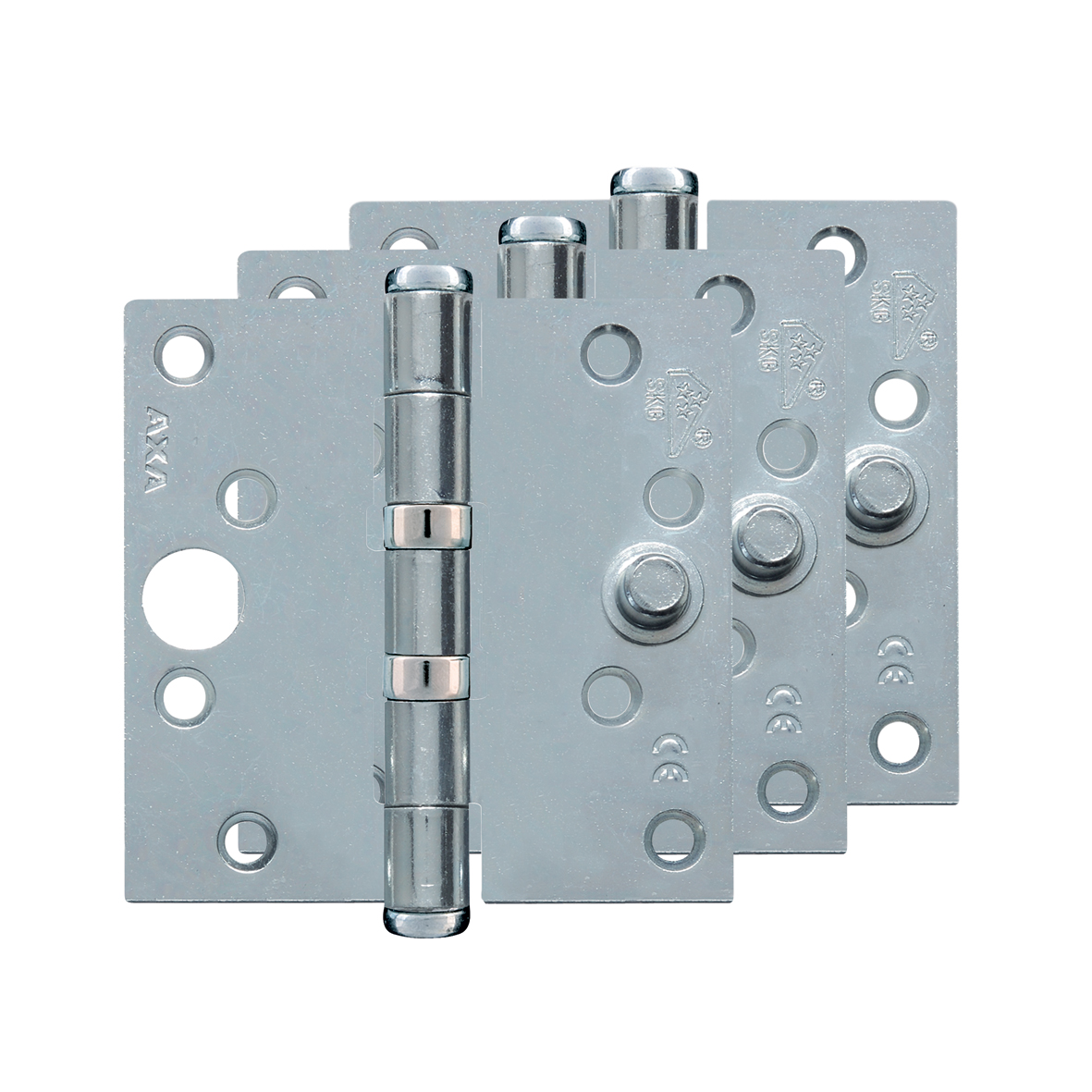

Security hinge ball bearing (3x)

1541-25-23/VCP3
arrow_selector
close

SKG 3

Police Hallmark

The AXA security ball bearing hinge is a smooth-running, burglar-resistant hinge with a high bearing capacity.

  • security model with built-in security pin
  • smooth-running
  • high bearing capacity
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing (3x)
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 11.8 mm
Corner shape right angle
Bearing ball-bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 65 kg
Load bearing capacity 4 hinges 80 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249353722
Dimensions small package 165 x 85 x 56 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249353739
Dimensions bulk package 225 x 175 x 120 mm
