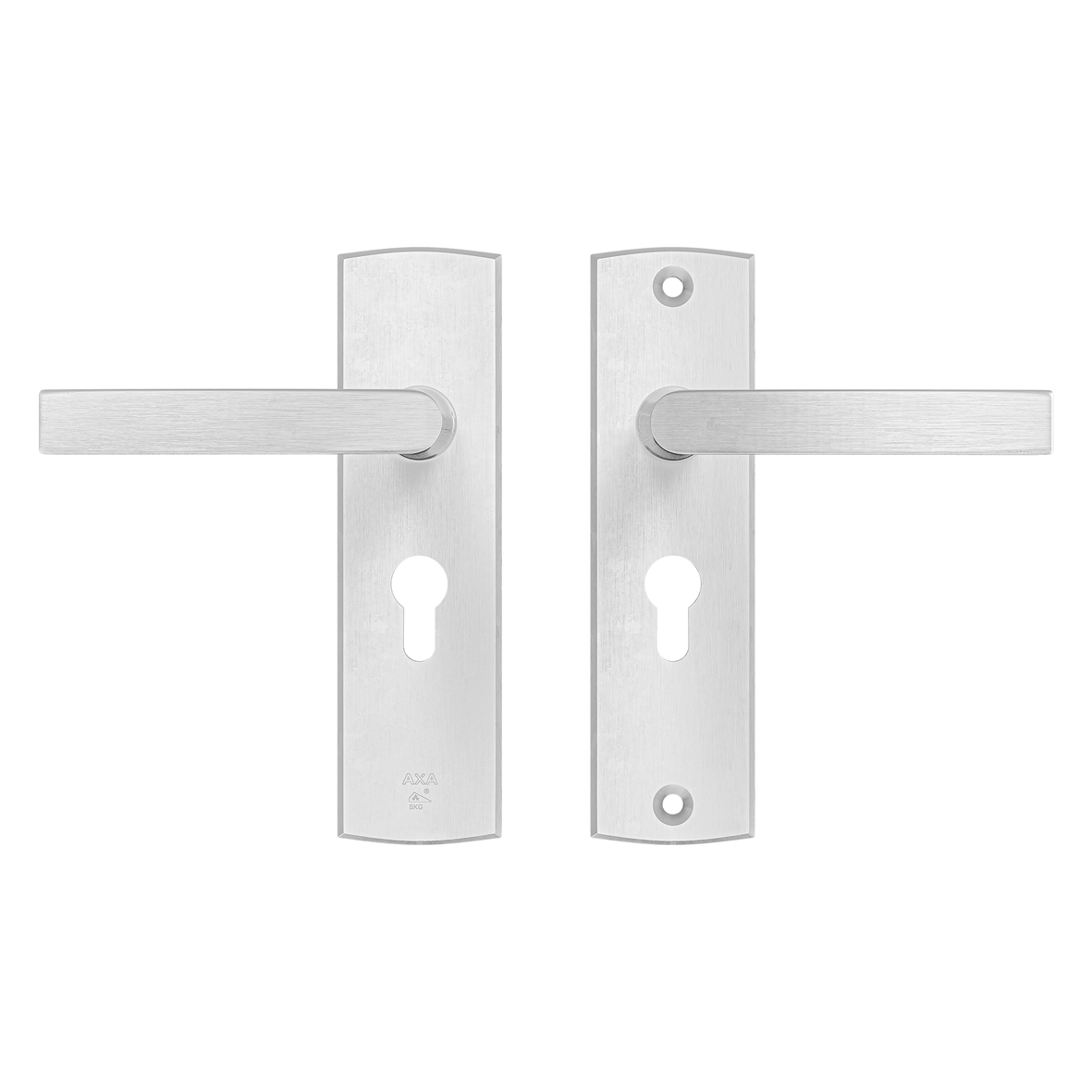

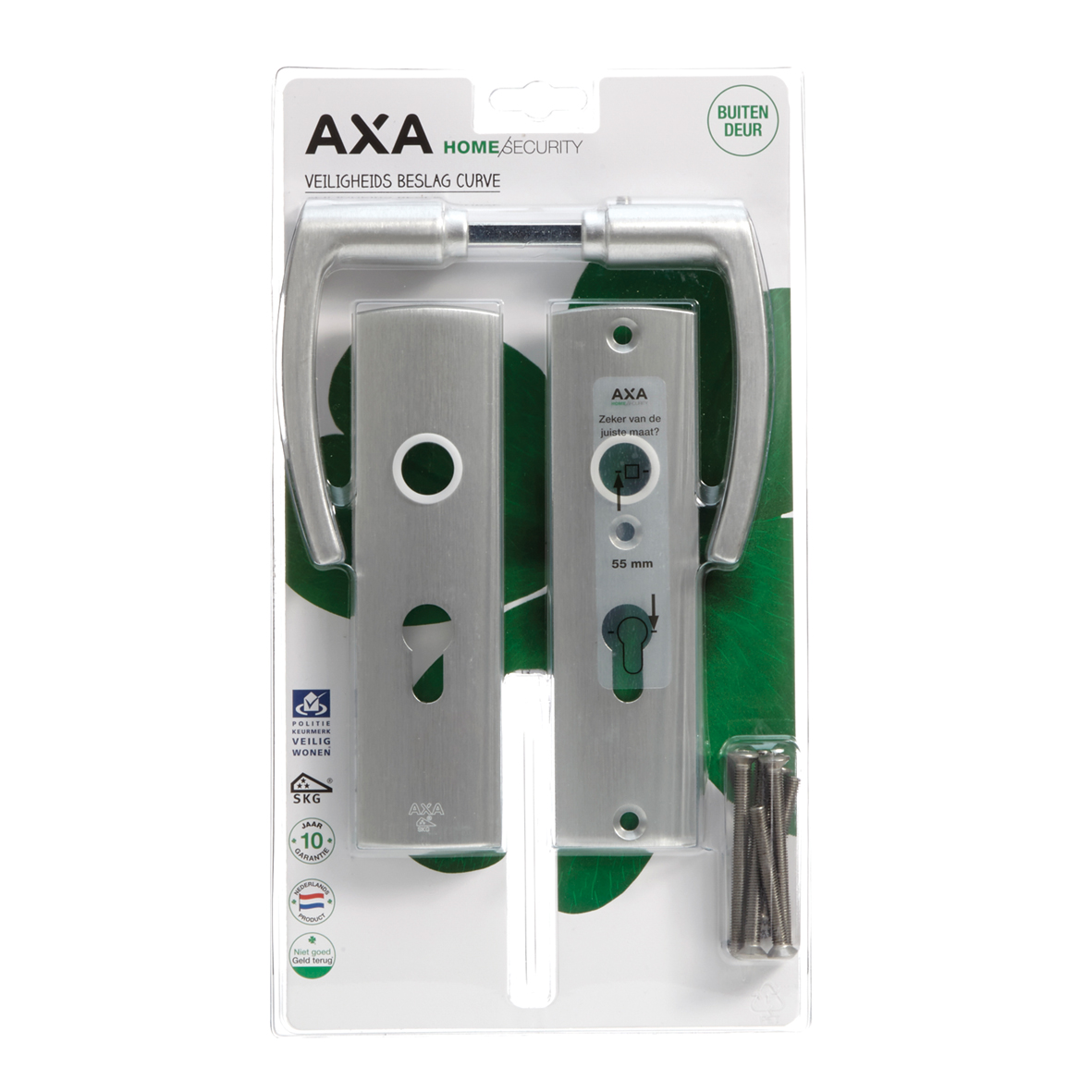

Security fitting Curve short handle Blok PC55

6670-10-11/BL55

+

2
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve burglar-resistant security escutcheon plates.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • universally usable on doors with a thickness of 35-43 and 54-58 mm
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Curve short handle Blok PC55
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Outside handle-Pusher-Knob type handle Block
Inside handle type handle Block
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
expand_more
Product Weight 898 gr
Pieces per small package 1 piece
EAN small package 8713249237374
Weight small package 0.9 kg
Dimensions small package 340 x 187 x 30 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249237381
Weight bulk package 3.82 kg
Dimensions bulk package 390 x 200 x 120 mm
