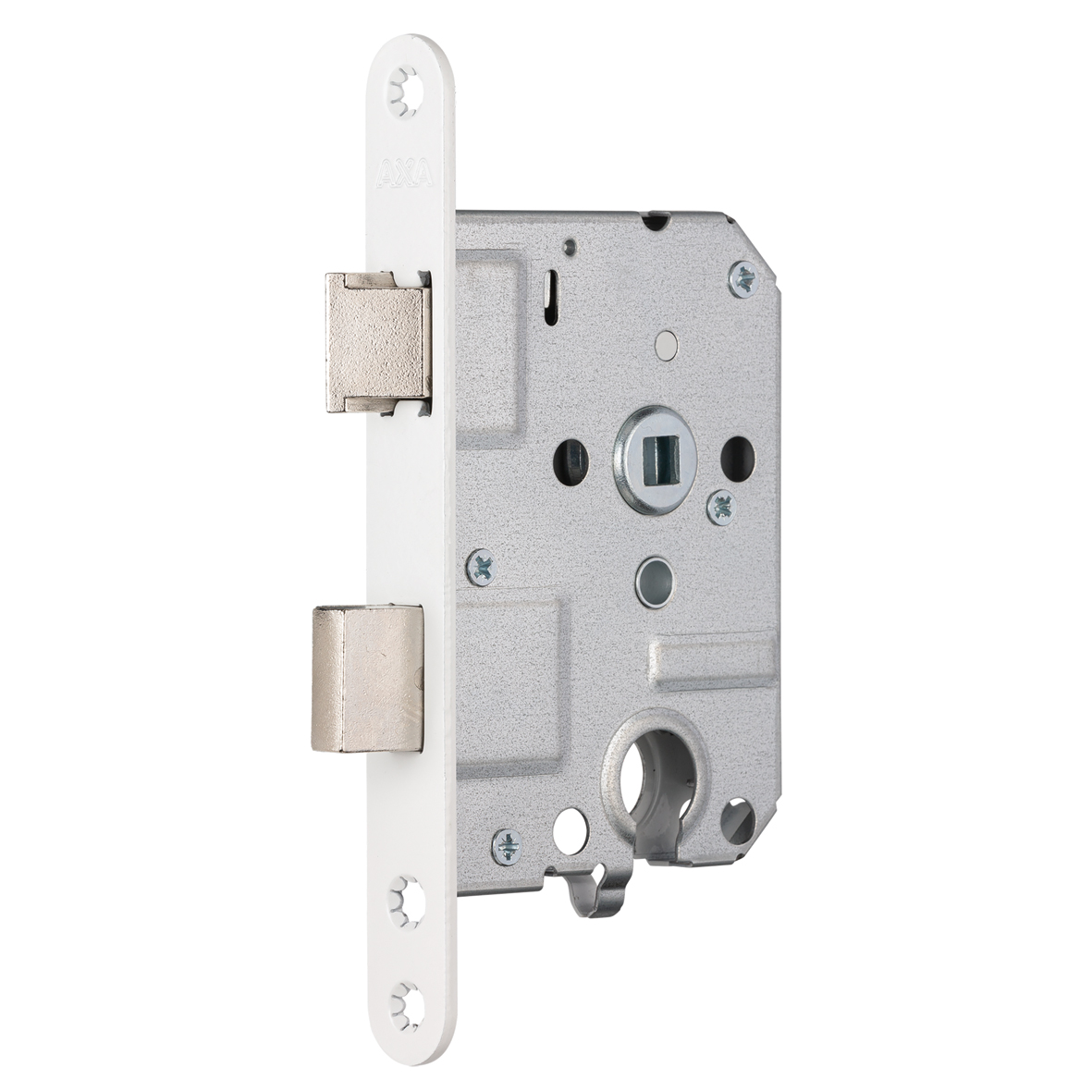

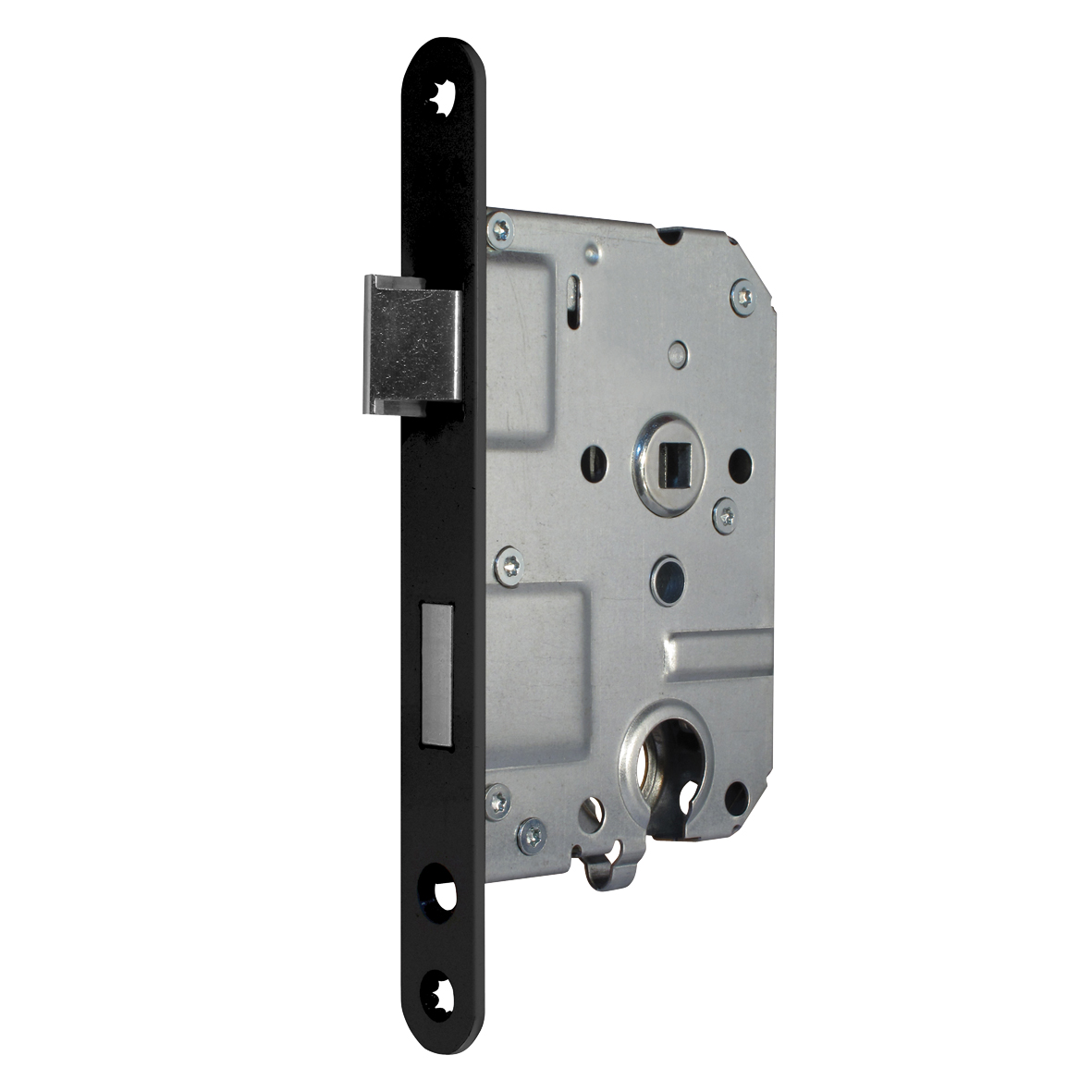

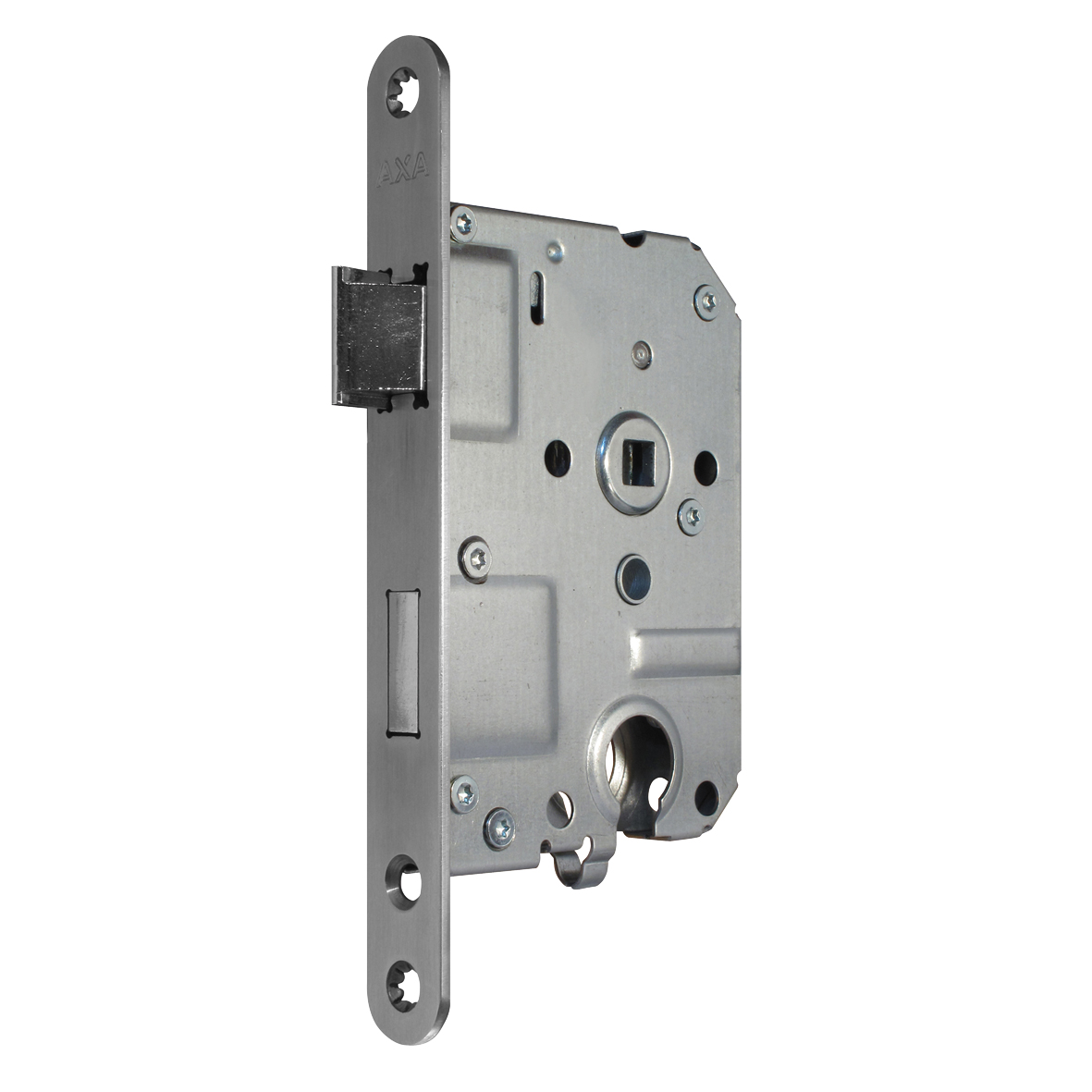

Mortice lock 7145 PC55

7145-50-81/55ZPE
arrow_selector
close

Universal mortice lock for interior doors.

  • with stainless steel faceplate
  • with cylinder hole
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7145 PC55
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 398 gr
Pieces per small package 10 piece
EAN small package 8713249361390
Weight small package 4.1 kg
Dimensions small package 185 x 185 x 105 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249361406
Weight bulk package 8.42 kg
Dimensions bulk package 386 x 188 x 114 mm

Technical drawings

Associated products

Mortice lock hookstriking plate 7135 SL-PC55 DIN left

7135-75-81/L

Mortice lock hookstriking plate 7135 SL-PC55 DIN right

7135-75-81/R
